Manual Hydraulic Table Lift, Mobile Scissor Lift Table, Portable Hydraulic Lifting Cart for Warehouse Workshop
Product Details
| Product Name | Manual Hydraulic Table Lift | Material | High-strength Steel Frame |
|---|---|---|---|
| Type | Single Scissor / Double Scissor | Load Capacity | 300kg, 500kg, 1000kg |
| Lifting Height | Custom Lifting Range |
Product Description

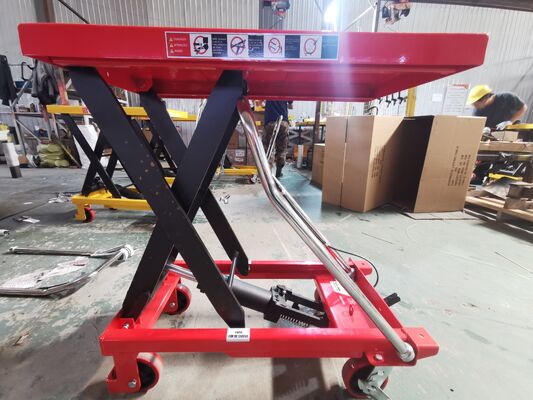

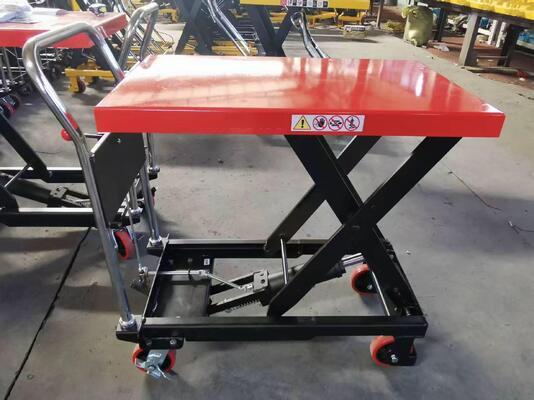

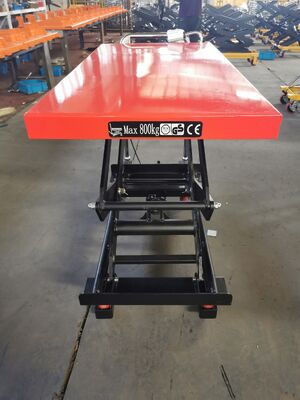

Manual Hydraulic Table Lift, Mobile Scissor Lift Table, Portable Hydraulic Lifting Cart for Warehouse Workshop
Description:
Manual hydraulic table lift, also known as scissor lift trolley, is an indispensable lifting and handling equipment widely used in workshops and warehouses. It adopts high-strength thick steel plate to build the scissor support frame, with firm welding process to guarantee structural stability under full load. Built-in overload protection mechanism effectively avoids safety hazards caused by overloading.
Equipped with foot pedal hydraulic system, operators can control lifting and lowering easily without electric power. The lifting speed is uniform and stable, which can protect workpieces from impact damage. Four PU silent casters are installed at the bottom, two of which are with brakes. Users can push the table lift to any working station conveniently and lock the wheels firmly during operation.
It can adjust the working height freely, greatly reduce workers’ bending and lifting labor. Single scissor and double scissor versions are available with different load and height ranges. Custom logo, color and packing are supported. This mobile lifting table is widely applied for mold handling, workpiece assembly, goods stacking on production lines. It is a practical and cost-effective solution for material lifting and height-adjustable operation.
Key Features:
| Heavy-duty Steel Structure | Robust scissor frame, strong load capacity and stable support. |
| Foot Hydraulic Lifting System | Pedal control, smooth lifting and lowering operation. |
| Lockable Silent Casters | PU wheels with brakes, flexible movement and fixed parking. |
| Safety Protection Device | Overload protection prevents overloading damage. |
| Adjustable Working Height | Freely adjust height to match different operation needs. |
Technical data:
| Model | Type | Platform size (mm) | Min.Height (mm) | Wheel diameter (mm) | N.W. (kg) |
| 150kg*0.72m | Single scissor | 700*450 | 210 | 100 | 45 |
| 150kg*0.72m | Single scissor | 700*450 | 210 | 100 | 45 |
| 150kg*1.26m | Double scissor | 700*450 | 240 | 100 | 55 |
| 150kg*1.26m | Double scissor | 700*450 | 290 | 100 | 57 |
| 350kg*0.9m | Single scissor | 815*500 | 295 | 125 | 77 |
| 350kg*1.3m | Double scissor | 905*500 | 350 | 125 | 106.5 |
| 350kg*1.5m | Double scissor | 905*500 | 350 | 125 | 107 |
| 500kg*0.9m | Single scissor | 815*500 | 295 | 125 | 77 |
| 500kg*1.3m | Double scissor | 905*500 | 350 | 125 | 107 |
| 500kg*1.5m | Double scissor | 905*500 | 350 | 125 | 108.5 |
| 500kg*2.0m | Double scissor | 905*500 | 450 | 125 | 146.5 |
| 800kg*1.5m | Double scissor | 1200*600 | 510 | 150 | 162 |
| 1000kg*1.0m | Single scissor | 1200*600 | 430 | 150 | 175.5 |
| 1000kg*1.7m | Double scissor | 1200*600 | 485 | 150 | 240 |
Workshop:
FAQ:
1. Are you manufacturer or trading company?
We are manufacturer with our own factories.
2. What’s the warranty for products?
Usually for 1 year for major part, for example, motor, pump. We also offer online service supports.
3. What’s your MOQ?
Because we are manufacturer, different items with different MOQ, but we also accept trial sample order.
4. What about deliver leading time?
About 15-30 working days
5. Where’s your factory?
Our factory located in Donglv industrial Area, belongs to Baoding city, near Capital Beijing. Convenient transportation. Our nearest port is Tianjin port.
