0.5 Ton - 50 Ton Wire Rope Electric Hoist CD1 MD1
Product Details
| Protection Class | IP54 IP44 M3 M4 | Capacity | 0.5ton To 50ton |
|---|---|---|---|
| Lifting Height | 6m.9m.12m,18m Customized | Lifting Speed | Single (CD1), Double Fast/low (MD1) |
| Motor Type | Pure Copper | Gear Reduction | Three-stage Alloy Quenched |
| Voltage | 220V/380V/440V/50HZ/60HZ/3PH | ||
| Highlight | 0.5 Ton Wire Rope Electric Hoist,50 Ton Wire Rope Electric Hoist |
||
Product Description
CD1 MD1 Wire rope electric hoist with 0.5ton to 50ton capacity, IP54 IP44 protection, and automatic braking for safe lifting
Description:
CD1 Wire rope electric hoist, MD1 Wire rope electric hoist, double girder electric hoist

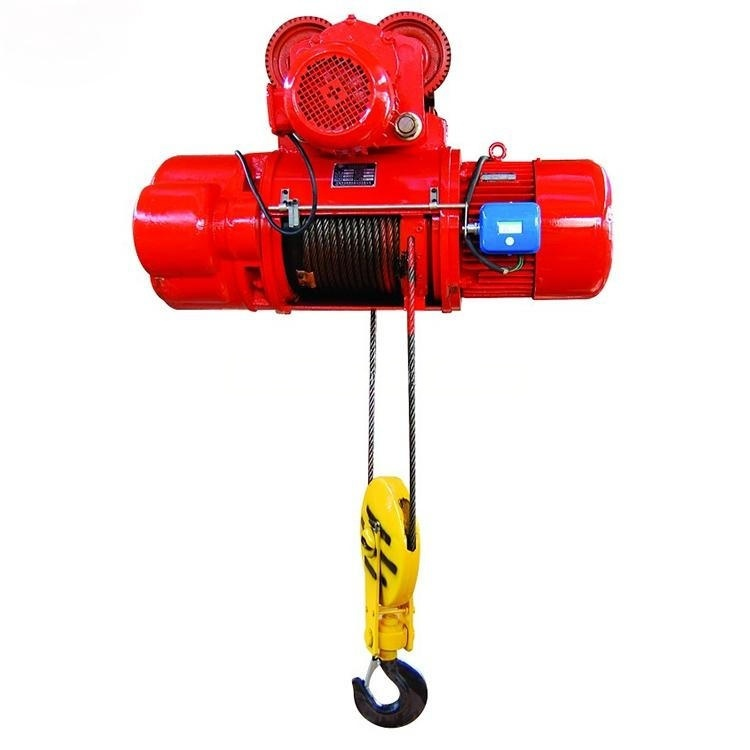

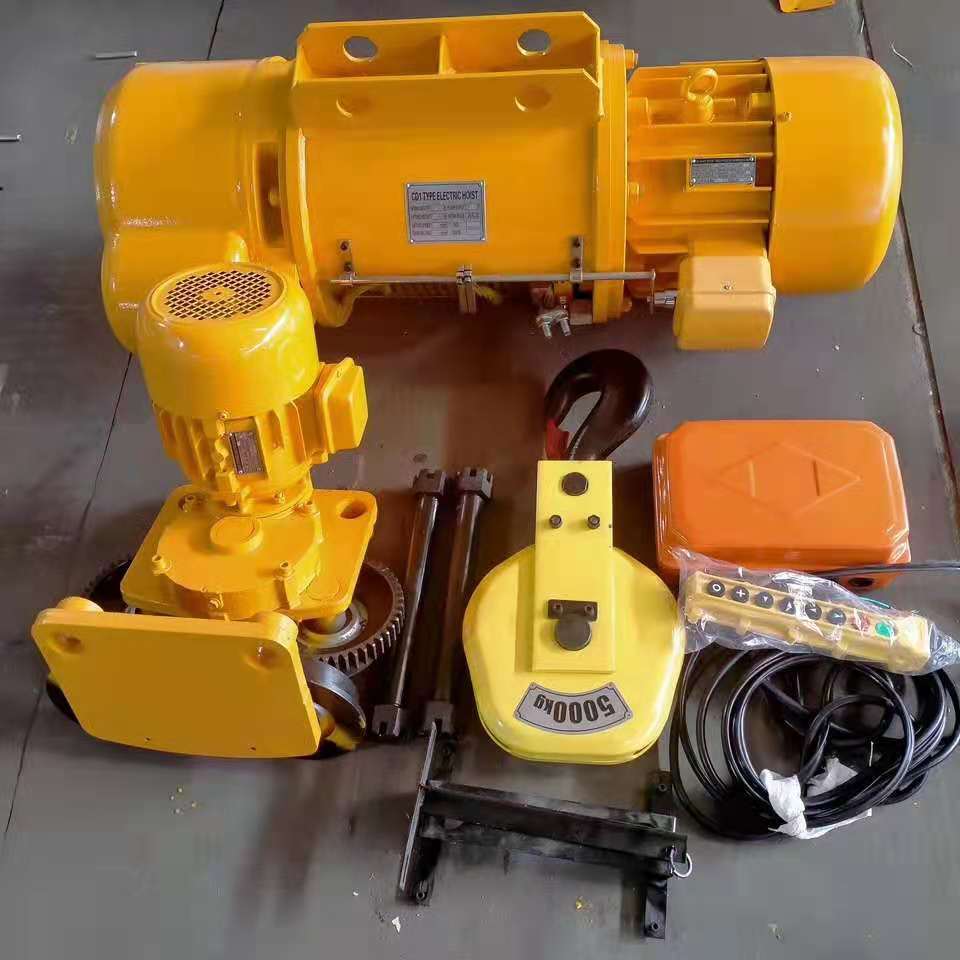

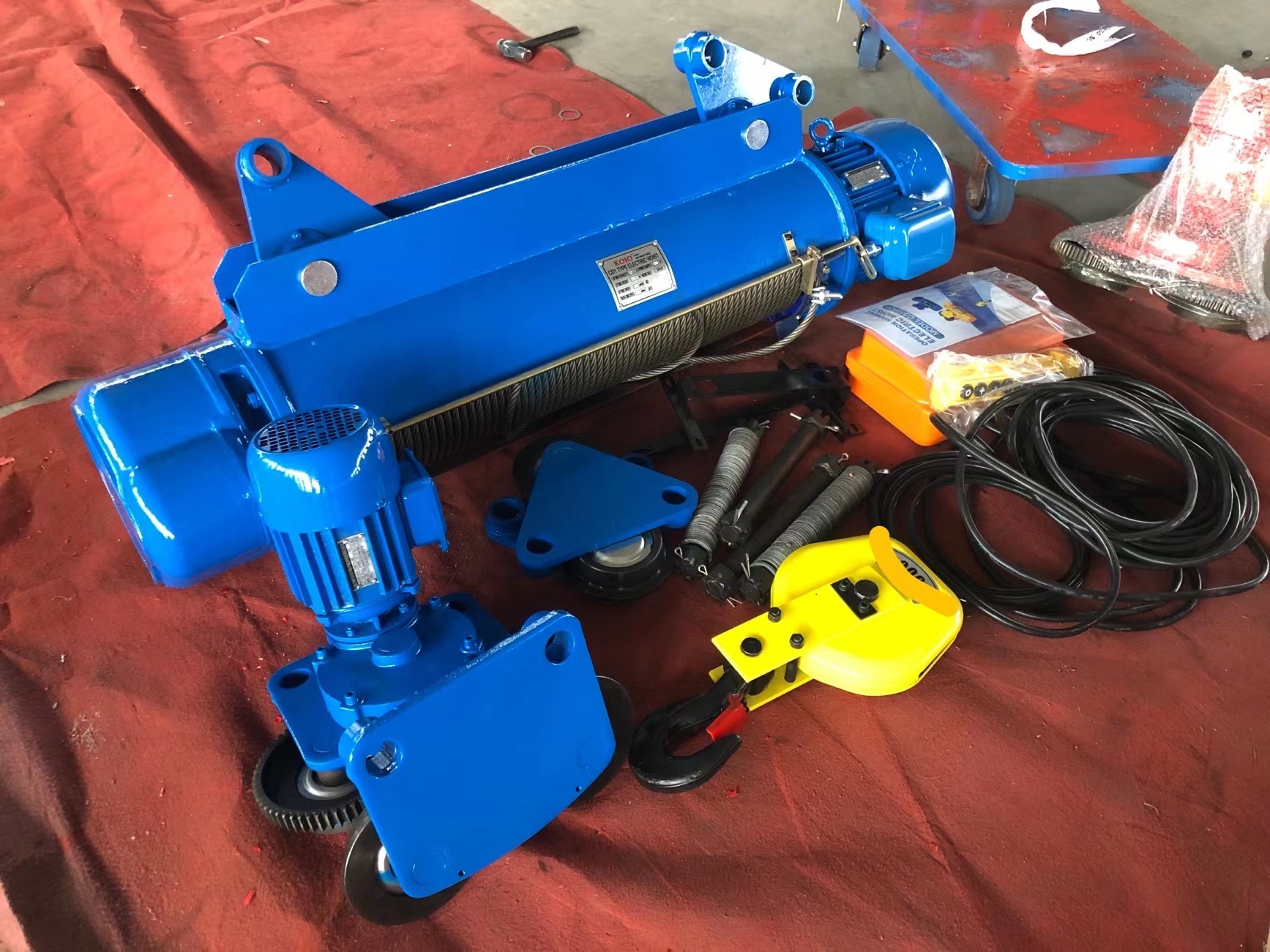

CD1 single speed and MD1 double speed wire rope electric hoist are classic heavy-duty lifting equipment widely used in workshops, factories and overhead crane systems. The whole machine adopts cast gearbox shell and thickened steel drum, stable structure and shock resistance. Equipped with high-power pure copper motor and hard tooth reducer, the hoist runs smoothly with low noise. It has built-in electromagnetic brake, upper and lower limit switches and overload protection device to guarantee working safety. MD1 type has slow speed for precise positioning. Matched with high strengthen steel wire rope, long service life. Can be fixed type or installed on electric trolley for traveling lifting. Widely matched with single girder overhead crane, factories, warehouse, mine, industrial construction ect.
- CD1 single speed, MD1 double speed optional for precision hoisting
- 100% pure copper motor, strong power and continuous working ability
- Hardened gear reducer, wear resistant and low failure rate
- Electromagnetic brake, limit switch and overload triple protection
- Can be fitted with electric trolley for overhead crane use
| 1 | Nanjing 100% copper motor |
| 2 | Anti-dropping thickness rope guide |
| 3 | European hooks, normal hooks supplied |
| 4 | 220V/380V/415V/440V/50HZ/60HZ/3PH |
| 5 | ODM&OEM acceptable |
Please read all instructions carefully before operating the wire rope electric hoist.
It is forbidden to work beyond the rated load. Only vertical hoisting is allowed; diagonal pulling and dragging cargo are not permitted. Never lift personnel, and keep everyone clear below suspended loads.
Carry out inspection on wire rope, hook, safety latch and limit devices before use. Stop using if the wire rope is worn, broken or twisted. When the hook descends to the lowest point, ensure at least two turns of wire rope stay on the drum.
The upper travel limit shall not be used as a regular stop device. Avoid lateral force which may cause the rope to jump out of the drum.
If abnormal vibration, noise or load slipping occurs, cut off power and inspect immediately. After operation, disconnect power. The hoist should be protected from rain erosion.
Technical Data
Applicable Locations
Factory, warehouse, construction
Production Workshop
FAQ:
1. Are you manufacturer or trading company?
We are manufacturer with our own factories.
2.What’s the warranty for products?
Usually for 1 year for major part, for example, motor, pump. We also offer online service supports.
3.What’s your MOQ?
1pcs
1. What about deliver leading time?
About 15-30 working days
2. Where’s your factory?
Our factory located in Donglv industrial Area, belongs to Baoding city, near Capital Beijing. Convenient transportation. Our nearest port is Tianjin port.
