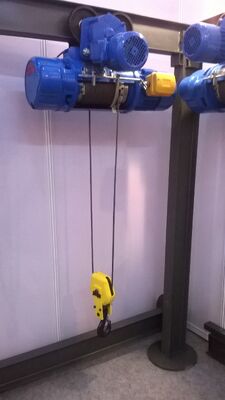

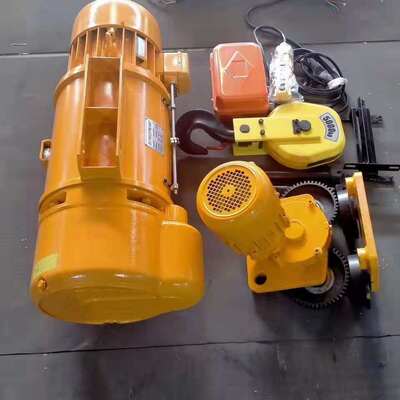

3PH Wire Rope Electric Hoist Single Speed CD1 Electric Hoist For Workshop
Product Details
| Product Name | CD1 Single Speed Electric Wire Rope Hoist | Lifting Speed | Single Speed |
|---|---|---|---|
| Lifting Capacity | 0.5ton To 50ton | Lifting Height | 6m,9m,12m,18m / Customized |
| Voltage | 220V/380V/440V/50HZ/60HZ/3PH | Motor Type | Pure Copper |
| Protection Class | IP54/IP44/M3/M4 | Gear Reduction | Three-stage Alloy Quenched |
| Highlight | 3PH Wire Rope Electric Hoist,Single Speed CD1 Electric Hoist,3PH CD1 Electric Hoist |
||
Product Description
CD1 Single Speed Wire Rope Electric Hoist, Stable Constant Speed Lifting Equipment for Workshop
Product Description:
CD1 single speed electric wire rope hoist is classic industrial lifting equipment with constant single lifting speed. It features reliable structure and easy maintenance. Equipped with power-off self-locking brake and upper/lower limit safety devices for stable operation. Fixed type or trolley type available for mobile hoisting. Complete range of capacities and lifting heights. Widely matched with single girder overhead cranes for general material handling in factories, warehouses and steel workshops.
Features:
| Constant Single Lifting Speed | Constant lifting speed, simple structure and low failure rate for regular hoisting work. |
| Power-off Self-locking Brake | Instant self-lock upon power cut to prevent load dropping. |
| Upper & Lower Limit Protection | Limit switches avoid over-travel and equipment collision damage. |
| Compact Integrated Structure | Compact integrated design, easy to mount on I-beam track. |
| Flexible Configuration & Customization | Fixed type or trolley type optional; capacity & lifting height customizable. |
Technical Data:
| Item | 0.5 Ton | 1 Ton | 2 Ton | 3 Ton | 5 Ton | 10 Ton | 16 Ton |
| Capacity (Ton) | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 |
| Lifting height (m) | 3–9 | 6–12 | 6–18 | 6–18 | 6–18 | 6–18 | 6–18 |
| Lifting speed (m/min) | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 |
| Running speed (m/min) | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 |
| Dia of wire rope (mm) | 4.8 | 7.4 | 11 | 13 | 15.5 | 15.5 | 15.5 |
| I Beam (GB706-88) | 16–28b | 16–28b | 20a–32c | 20a–32c | 25a–45c | 32b–63c | 32b–63c |
| Lift motor capacity (kW) | 0.8 | 1.5 | 3 | 4.5 | 7.5 | 13 | 13 |
| Running motor capacity (kW) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8×2 | 0.8×2 |
| Voltage | 220V/380V/440V, 50Hz/60Hz, 3PH | ||||||
| Remark | Double girder customized | ||||||
Applicable Locations:
CD1 single speed hoist provides stable and cost-effective general lifting, suitable for cargo loading, workshop workpiece transfer and warehouse handling, commonly used with single girder cranes. Compared with MD1 double speed model, it is more economical for jobs without precise fine positioning.
