Compact Chain Manual Hoist 1ton 2ton 3ton
| Place of Origin | CHINA |
|---|---|
| Brand Name | OEM |
| Certification | CE |
| Model Number | HS-VD |
| Document | C81989 MD.pdf |
| Minimum Order Quantity | 20 |
| Price | 32USD |
| Packaging Details | Carton, wooden case |
| Delivery Time | 20 Working time |
| Payment Terms | T/T |
| Supply Ability | 50000PCS/ YEAR |
Product Details
| Product Name | Manual Hoist, Chain Hoist And Chain Block Vital Type | Test Load | 1.5Times |
|---|---|---|---|
| Breaking Load | 4Times | Capacity | 0.5Ton To 30Ton |
| Color | Yellow, Red, Black, Green, Blue Customized | After Sales Servie | Yes |
| Certificate | CE | ||
| Highlight | Compact Chain Manual Hoist |
||
Product Description

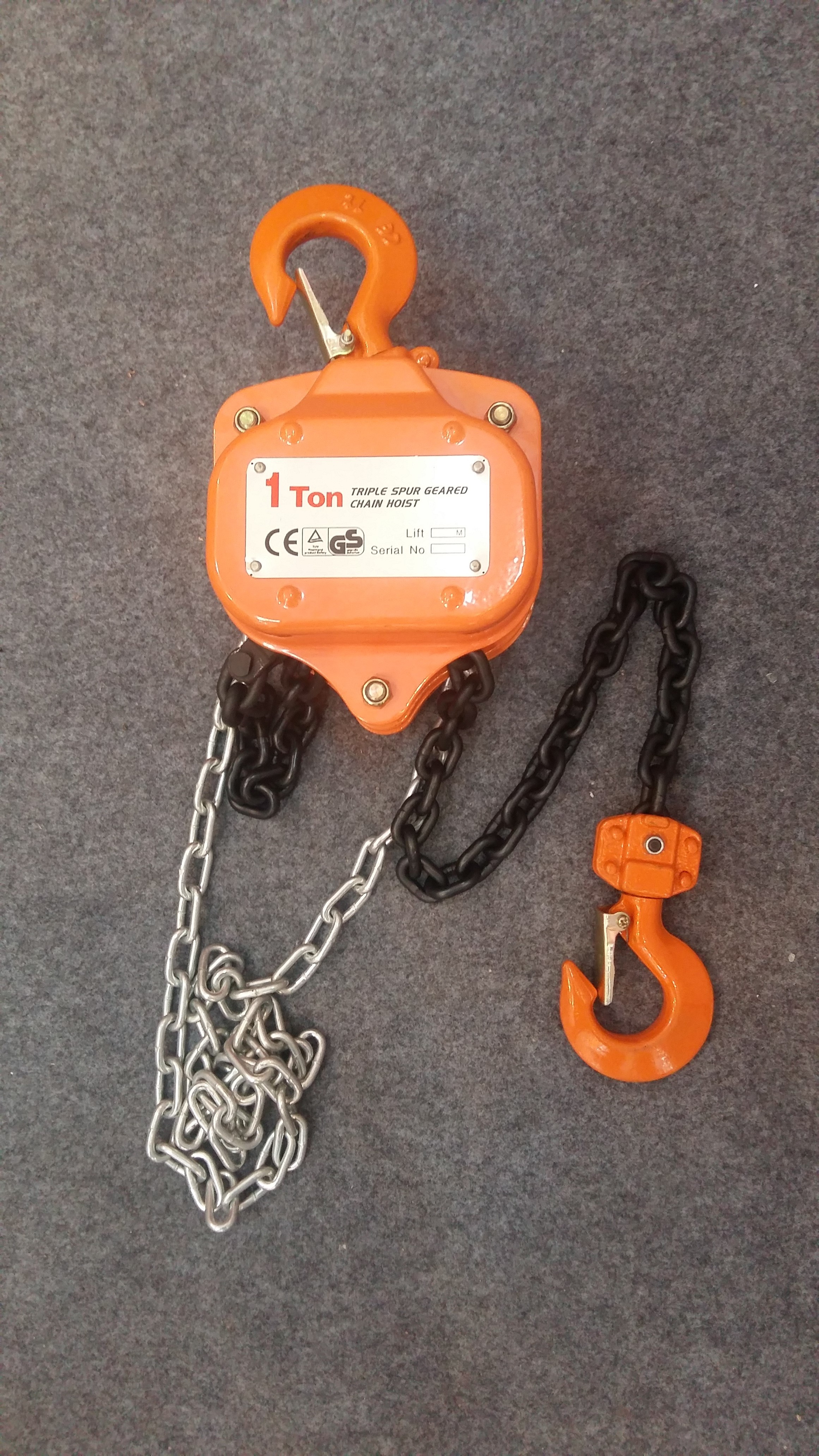

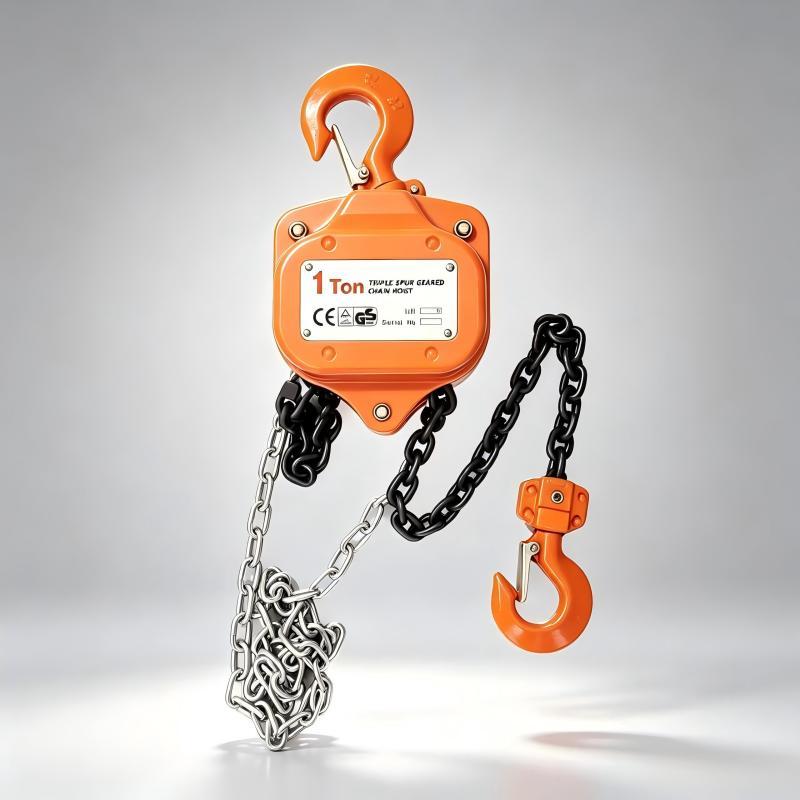

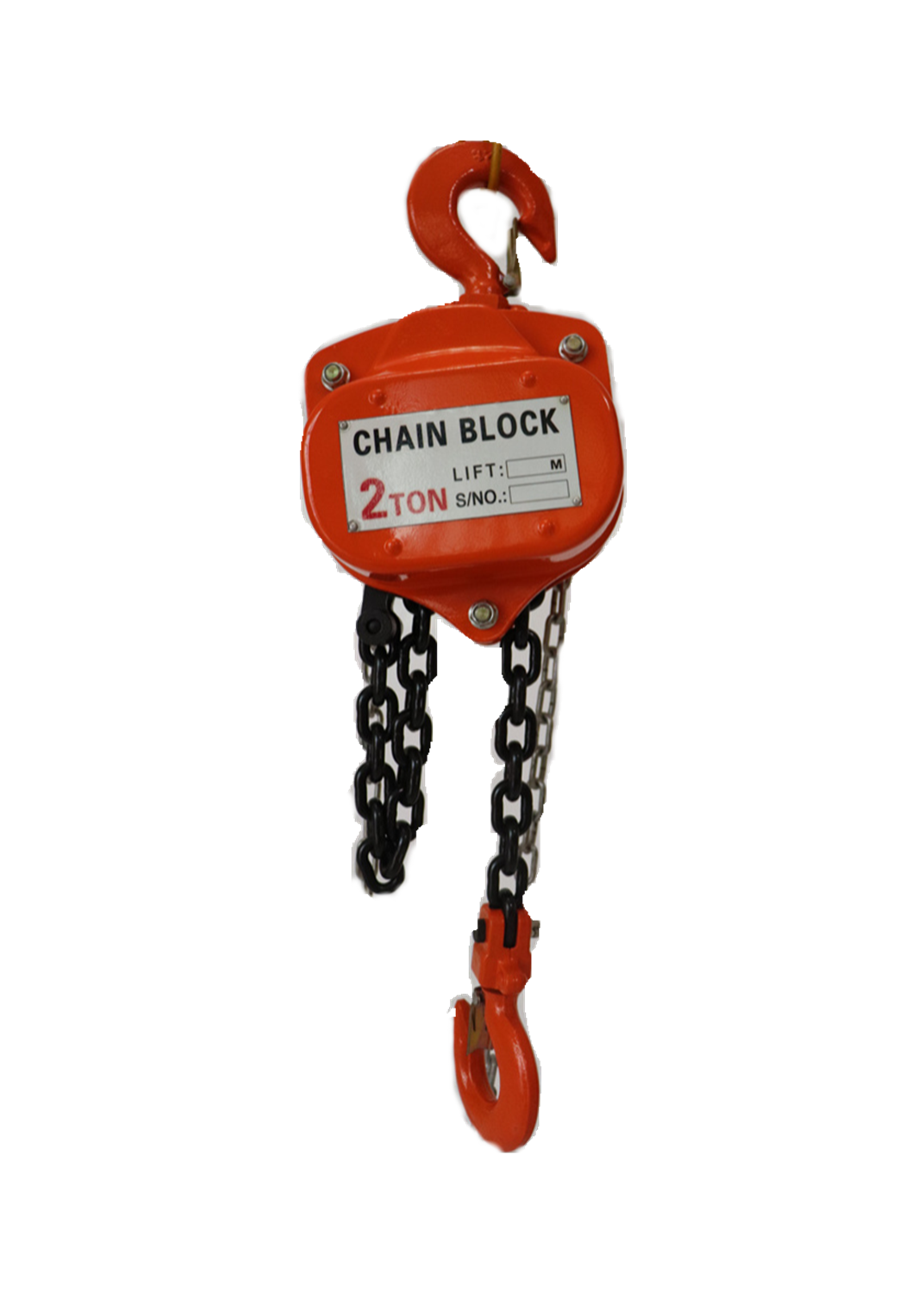

Manual chain hoist compact and lightweight vital type chain block 1ton 2ton 3ton
Description:
Chain block (also called a manual chain hoist) is a portable, hand-operated device used to lift and lower heavy loads vertically. By pulling a continuous hand chain, a mechanical gear system multiplies your pulling force, allowing a single person to safely lift heavy objects like engine blocks or industrial equipment
Vital type chain block is one of most popular type. Built with overload protection structure, upper and lower chain stoppers to prevent over travel. This manual chain block features high efficiency, little pulling force, low failure rate and easy maintenance. Widely used in workshops, decoration, installation work, logistics loading and outdoor construction.
Operated entirely by hand; requires no external power source.
Simply pulling the chain by hand drives the internal gear assembly to lift or lower heavy loads. It operates without electricity, hydraulics, or other external energy sources, making it suitable for complex scenarios such as locations without power or temporary work sites.
Compact and highly portable
Features a modular design that is small in size and lightweight (approximately 10–15 kg for the 1-ton model), allowing for single-person handling and suitability for confined spaces, work at heights, mobile lifting operations, and more.
Equipped with a safety latch to prevent accidental hook detachment; • Built-in braking mechanism automatically locks during the lifting or lowering of heavy loads to prevent slippage; • Select models feature an explosion-proof design, suitable for flammable and explosive environments such as chemical plants and coal mines.
Wide load range and diverse specifications
Load capacities range from 0.5 to 30 tons, with selectable chain lengths of 1 to 15 meters, meeting requirements for a full spectrum of applications—from light industrial assembly to heavy equipment lifting.
Feature:
| 1 | Alloyed steel hook, with heat treatment |
| 2 | G80 alloyed steel lifting chain |
| 3 | Strenthen spare parts: bearing, shaft, roller guide, plate ect. more flexiable |
| 4 | 1.5 times testing load, 4 times breaking load |
| 5 | Color: Customization |
| 6 | CE certificate |
Technical data
| Model | VT 1 | VT 1.5 | VT 2 | VT 3 | VT 5 | VT 10 | |
| Capacity(T) | 1 | 1.5 | 2 | 3 | 5 | 10 | |
| Standard Lifting Height(m) | 3 | 3 | 3 | 3 | 3 | 3.5 | |
| Testing Load(T) | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | |
| Min.Headroom(hook to hook)(mm) | 340 | 380 | 360 | 480 | 555 | 740 | |
| Pulling Force to Full LoadKGF | 33 | 34 | 34 | 35 | 39 | 41 | |
| No.of Load Chain Strand | 1 | 1 | 1 | 2 | 2 | 4 | |
| Diameter of Load Chain(mm) | 6.3 | 7.1 | 8 | 7.1 | 9 | 9 | |
| Gross Weight(Kg) | 12 | 15 | 20 | 21 | 37.5 | 74 | |
| Packing Measurement(CM) | 25*17*23 | 28*17*25 | 30*21*29 | 31*18*29 | 40*21*35.5 | 55*48*25 | |
Work shop:
FAQ:
1. Are you manufacturer or trading company?
We are manufacturer with our own factories.
2. What’s the warranty for products?
Usually for 1 year for major part, for example, motor, pump. We also offer online service supports.
3. What’s your MOQ?
Fob term: MOQ 20pcs, EXW term: 5pcs but we also accept trial sample order.
4. What about deliver leading time?
About 15-30 working days
5. Where’s your factory?
Our factory located in Donglv industrial Area, belongs to Baoding city, near Capital Beijing. Convenient transportation. Our nearest port is Tianjin port.
