3m Lifting Chain Hoist 1T - 30T Hand Chain Blocks Multi Scene General
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | OEM/WELDON LIFT |
| Certification | CE |
| Model Number | K75 |
| Document | chain block CE.pdf |
| Minimum Order Quantity | 20 |
| Packaging Details | Carton, wooden case |
| Delivery Time | 20 work days |
| Payment Terms | T/T |
| Supply Ability | 50000PCS/ YEAR |
Product Details
| Name | Lifting Chain Hoist | Model | K75 Chain Block |
|---|---|---|---|
| Capacity | 0.5T / 1T / 1.5T / 2T / 3T / 5T / 10T / 20T/ 30T | Standard Lifting Height | 3m (Custom 6m/9m/12m Available) |
| Safety Design | 4:1 | Factory Test Standard | 1.5 Times Rated Load Static Load Fatigue Test |
| Drive Mode | Manual Hand Pull | ||
| Highlight | 3m Lifting Chain Hoist,Lifting Chain Hoist 1T,30T Hand Chain Blocks |
||
Product Description
K75 Standard Manual Chain Hoist 1T-30T Multi-scene General Hand Chain Block Industrial Lifting Tool
Product Overview:
K75 series chain block adopts streamline curved shell design, optimized internal gear transmission structure, balanced performance between load capacity and operation labor-saving. Standard international safety manufacturing standards, equipped with reliable double self-locking brake system and high-strength alloy load chain. Balanced weight and size, suitable for daily general lifting operations of factories, construction and warehouses, stable performance and wide applicability.
Feature:
| Streamline Curved Shell | Integrated stamping forming, stress uniform, not easy to crack. |
| Balanced Labor-saving Gear System | Scientific tooth ratio, moderate pulling force for long operation. |
| High Toughness Heat Treated Chain | Uniform hardness of chain link, anti-break and wear-resistant. |
| 360° Rotatable Forged Safety Hook | Free rotation without twisting chain, spring anti-drop latch. |
| Complete Specifications & Custom Length | 0.5T-30T full tonnage, 3m standard lift height, customized chain available. |

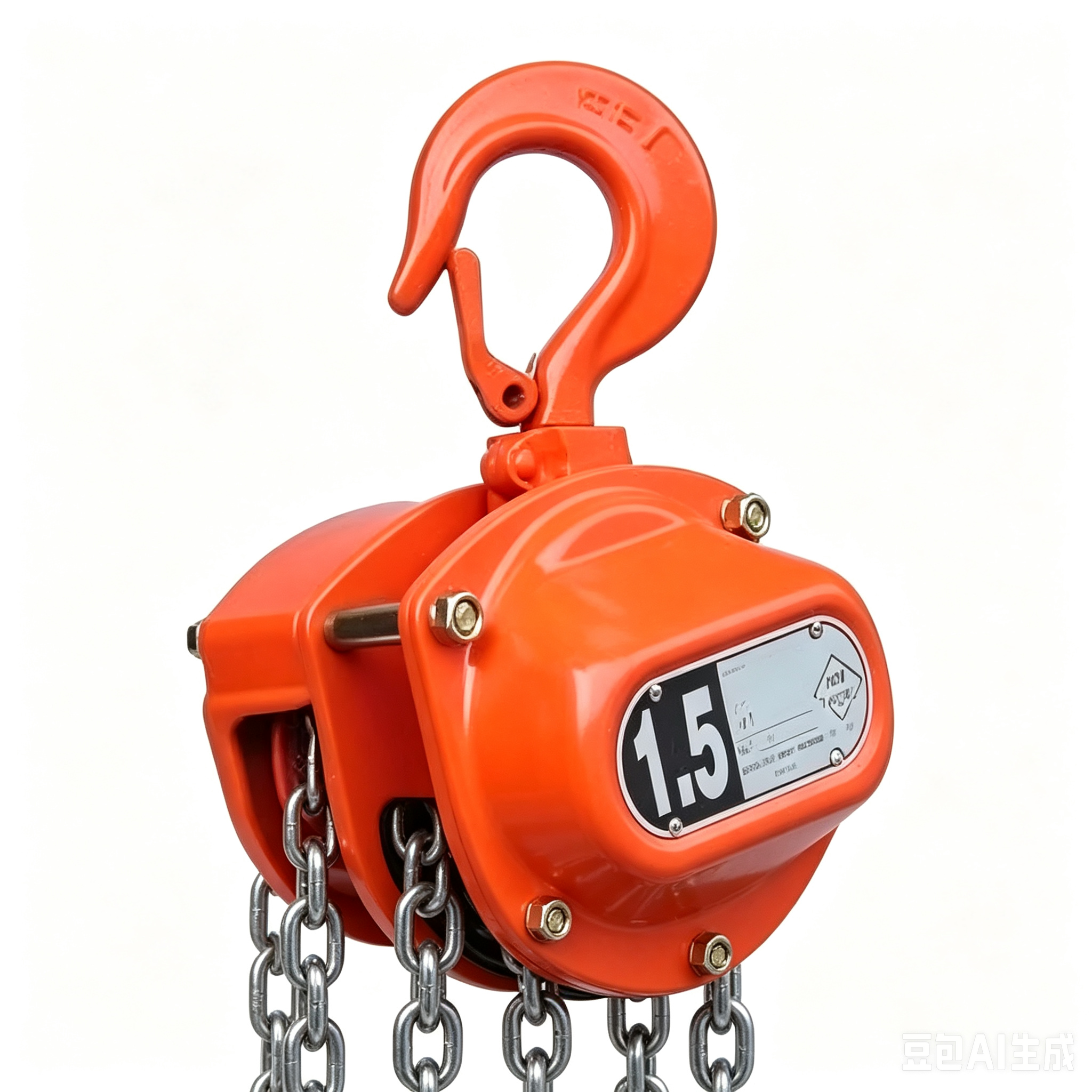

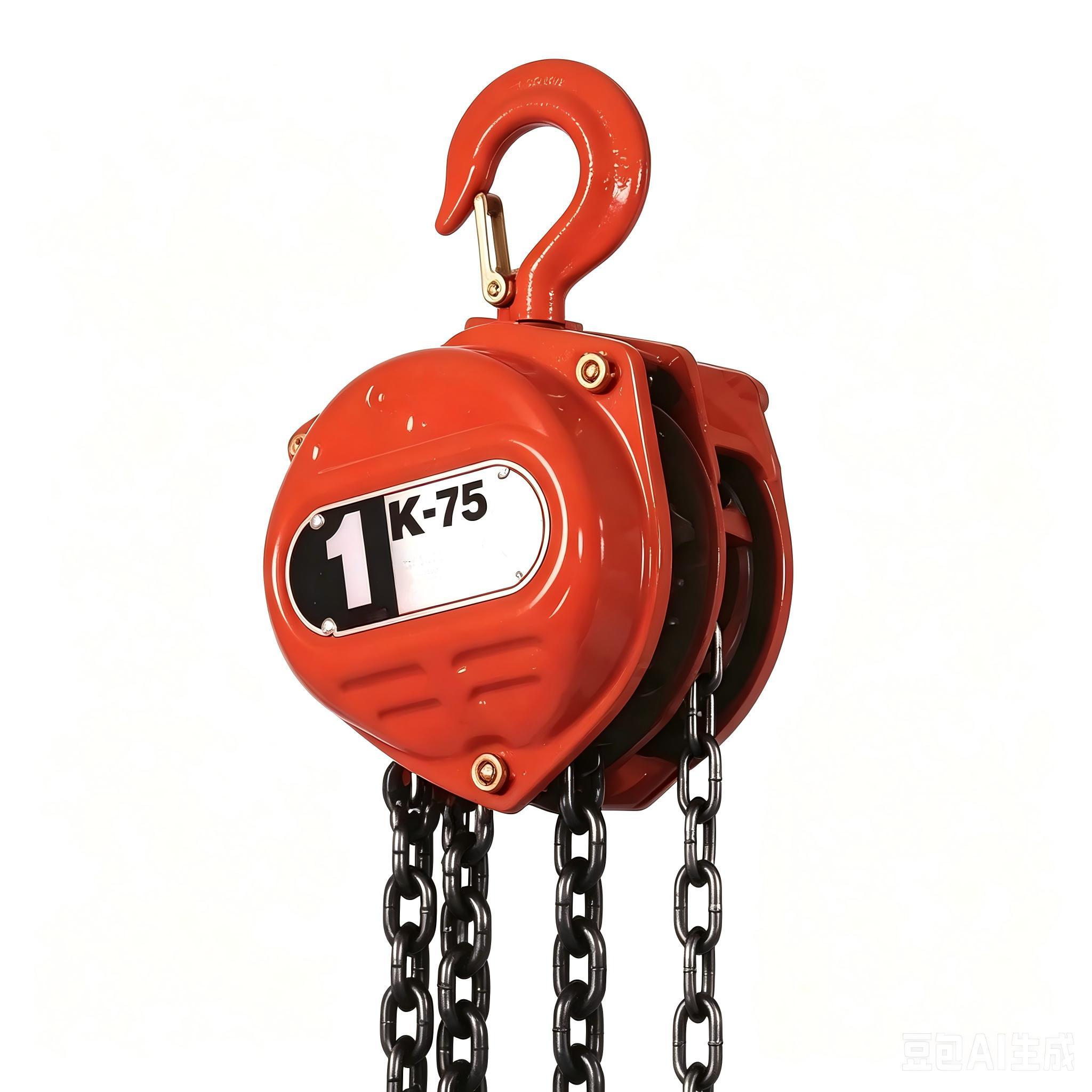

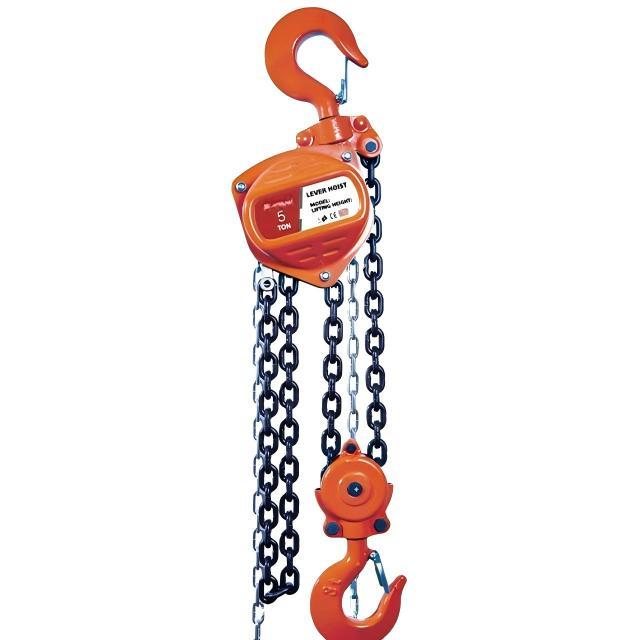

Real Shot:
Technical data:
| Model | 0.5T | 1T | 1.5T | 2T | 3T | 5T | 10T |
| Capacity (t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 |
| Standard Lift (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Test Load (t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 |
| Min. Distance Between Hooks (mm) | 285 | 315 | 340 | 380 | 475 | 600 | 700 |
| Chain Pull to Lift Full Load (N) | 25 | 33 | 34 | 34 | 35 | 39 | 41 |
| No. of Load Chain Falls | 1 | 1 | 1 | 1 | 2 | 2 | 4 |
| Diameter of Load Chain (mm) | 6 | 6 | 7.1 | 8 | 8 | 10 | 10 |
| Net Weight (kg) | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77 |
| Gross Weight (kg) | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85 |
| Packing Measurement L×W×H (cm) | 26×16×20 | 26×16×20 | 27×18×24 | 27×18×24 | 28×19×26 | 39×22×30 | 48×46×26 |
Work shop:
FAQ:
1. Are you manufacturer or trading company?
We are manufacturer with our own factories.
2.What’s the warranty for products?
Usually for 1 year for major part, for example, motor, pump. We also offer online service supports.
3.What’s your MOQ?
Negotiate based on the circumstances. EXW term: 1pcs.
4. What’s your payment term?
100% TT under amount 5000USD, 30%TT as down payment, balance before loading when amount more than 5000USD.
5. What about deliver leading time?
About 15 working days
6. Where’s your factory?
Our factory located in Donglv industrial Area, belongs to Baoding city, near Capital Beijing. Convenient transportation. Our nearest port is Tianjin port.
