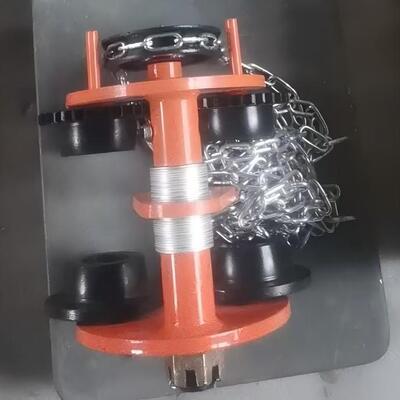

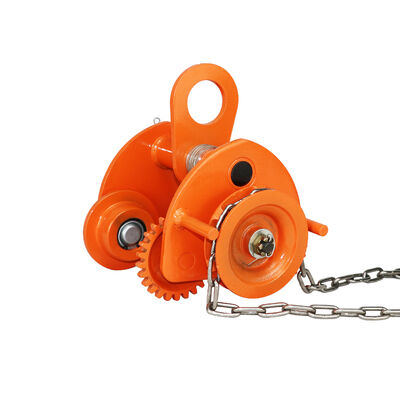

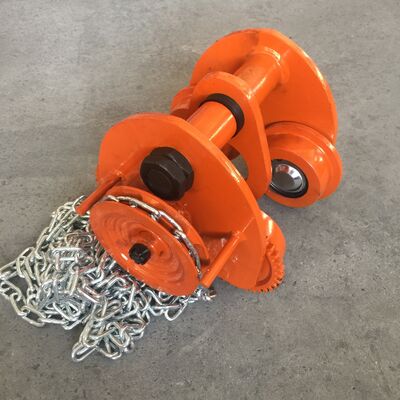

Gear Type Chain Block Trolley Manual I Beam Hoist Trolley For Industrial Lifting

  • Gear Type Chain Block Trolley Manual I Beam Hoist Trolley For Industrial Lifting
  • Gear Type Chain Block Trolley Manual I Beam Hoist Trolley For Industrial Lifting
  • Gear Type Chain Block Trolley Manual I Beam Hoist Trolley For Industrial Lifting
  • Gear Type Chain Block Trolley Manual I Beam Hoist Trolley For Industrial Lifting
Place of Origin HEBEI, CHINA
Brand Name OEM
Certification CE ISO
Model Number Manual push type
Minimum Order Quantity 50PCS
Price 15USD
Packaging Details Carton
Delivery Time 20 Work days
Payment Terms T/T
Supply Ability 50000 PCS/ YEAR
Product Details
Product Name Geared Trolley Operation Type Hand Chain Gear Driven
Capacity 0.5T - 10T Beam Type I Beam, H Beam, Channel Beam
Material Alloyed Steel Color Red, Yellow, Orange, Blue, Customized
Highlight

Gear Type Chain Block Trolley

,

Manual Chain Block Trolley

,

Manual I Beam Hoist Trolley
Leave a Message
Product Description

Hand Geared Trolley, Gear Type Manual I-Beam Trolley for Hand Chain Block


Product Description:

 Hand geared trolley, also known as hand chain trolley, is a professional gear-driven monorail travelling equipment widely used for indoor overhead material handling. Different from push-type trolleys, it adopts precision internal gear transmission structure. Operators only need to pull the manual hand chain steadily to drive the built-in gear set, enabling the trolley to move smoothly and transversely along the I-beam track with labor-saving operation.
 Constructed with high-strength integral steel frame and durable cast steel walking wheels, the trolley features excellent load-bearing capacity, stable operation and long service life. It is specially designed with a reliable anti-derail wheel structure to effectively prevent track slipping and derailment during overhead travelling, ensuring high safety during lifting and moving work.
 The adjustable flange width allows flexible adaptation to various standard I-beam specifications, providing strong compatibility for different factory track installations. This geared trolley can be directly matched with hand chain blocks to complete integrated overhead lifting, transporting and positioning of heavy workpieces.
 It is the ideal solution for powerless workshops, outdoor sites and working environments without power supply. Perfect for low-frequency hoisting, intermittent equipment maintenance and small-batch cargo handling. With simple operation, easy installation and low failure rate, it has become a staple lifting accessory for machinery workshops, warehouses and processing factories.


Key Features:

  Gear Driving Structure   Precision gear transmission, labour-saving pulling and steady travelling under load.
  Heavy-duty Cast Steel Wheels   Low friction, wear-resistant cast wheels, effortless pushing movement.
  Simple Maintenance   Compact mechanical structure, few vulnerable parts, easy inspection & service.
  Adjustable Wheel Span   Flexible flange width adjustment to fit various standard I-beams.


Gear Type Chain Block Trolley Manual I Beam Hoist Trolley For Industrial Lifting


Technical Specifications:

Capacity I-beam width Min. turning radius N.W./KGS A B C H
0.5T 68-94 0.9M 7.8 233 170 183 112
1.0T 68-100 1.0M 10.2 255 193 215 143
2.0T 94-124 1.1M 15.5 301 235 260 175
3.0T 116-140 1.3M 25.5 343 280 308 215
5.0T 140-180 1.4M 39.5 415 335 382 250
10T 125-180 1.7M 100 442 395 510 295
20T 122-203 5.0M 235 475 798 575 300


Workshop:

Application Scenarios:

Manual monorail trolley is preferred for low-frequency, intermittent lifting work. It is widely used in equipment maintenance workshops, small processing factories and storage warehouses. Compared with electric trolley, it requires no power supply, lower purchase cost and simpler installation.
