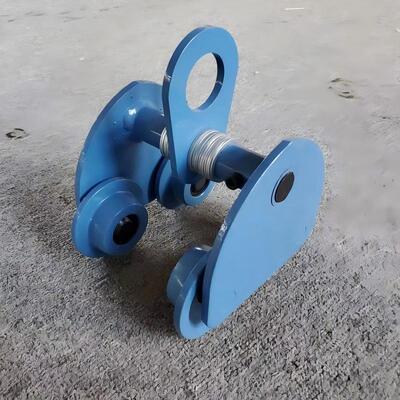

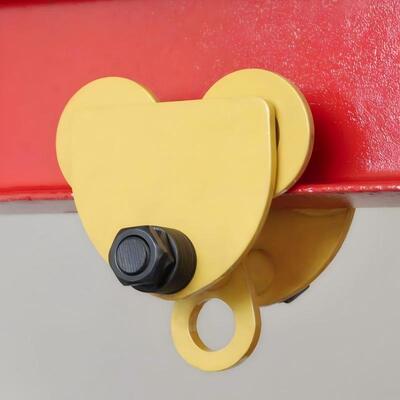

Travelling Manual I Beam Trolley Single Rail Push Travel Trolley For Overhead Lifting
Product Details
| Product Name | Plain Trolley | Operation Type | Manual Push Type |
|---|---|---|---|
| Capacity | 0.5T - 10T | Beam Type | I Beam, H Beam, Channel Beam |
| Material | Alloyed Steel | Color | Red, Yellow, Orange, Blue, Customized |
| Highlight | Travelling Manual I Beam Trolley,Single Rail Manual I Beam Trolley,Single Rail Push Travel Trolley |
||
Product Description
Manual I Beam Monorail Trolley, Plain Trolley Push Type Travelling Trolley For Overhead LiftingMeta Description
Product Description:
Manual monorail trolley is a lightweight travelling component specially designed for various overhead lifting systems in industrial workshops. Operated simply by manual pushing, the trolley can travel steadily and smoothly along standard I-beam tracks without power support. Its flexible adjustable wheel spacing enables convenient adaptation to multiple I-beam widths, bringing outstanding compatibility for different on-site track installations.
This trolley is fitted with reliable anti-derail structure and wear-resistant high-strength cast wheels. The optimized wheel design reduces running friction and resists long-term abrasion. With stable structural performance, it effectively avoids derailment hazards and guarantees safe travelling under the specified rated working load.
Simple in overall structure, the trolley is easy to install, inspect and maintain, requiring minimal upkeep during long-term service. It is commonly matched with hand chain blocks and light electric hoists to form a complete overhead lifting combination. Widely deployed inside production factories, storage warehouses and equipment maintenance workshops. It offers flexible solutions for irregular material transportation, workpiece displacement and intermittent light-load hoisting tasks. Multiple tonnage options are available to satisfy diverse light and medium-duty overhead handling requirements.
Key Features:
| Anti-derail Safety Construction | Prevent trolley derailment during travelling to avoid safety accidents. |
| Heavy-duty Cast Steel Wheels | Low friction, wear-resistant cast wheels, effortless pushing movement. |
| Simple Maintenance | Compact mechanical structure, few vulnerable parts, easy inspection & service. |
| Adjustable Wheel Span | Flexible flange width adjustment to fit various standard I-beams. |
Technical Specifications:
| Capacity (T) | I-bearm width (mm) | Min. turning radius(M) | N.W (kg) | A (mm) | B (mm) | C (mm) | H (mm) |
| 0.5 | 68-94 | 0.9 | 5.3 | 189 | 170 | 183 | 112 |
| 1.0 | 68-100 | 1.0 | 7.5 | 208 | 193 | 215 | 143 |
| 2.0 | 94-124 | 1.1 | 11.2 | 250 | 235 | 260 | 175 |
| 3.0 | 116-140 | 1.3 | 21 | 288 | 280 | 308 | 215 |
| 5.0 | 140-180 | 1.4 | 30.5 | 355 | 335 | 382 | 250 |
| 10 | 125-180 | 1.7 | 90 | 362 | 395 | 510 | 295 |
| 20 | 136-203 | 5.0 | 235 | 475 | 642 | 622 | 315 |
Workshop:
Application Scenarios:
Manual monorail trolley is preferred for low-frequency, intermittent lifting work. It is widely used in equipment maintenance workshops, small processing factories and storage warehouses. Compared with electric trolley, it requires no power supply, lower purchase cost and simpler installation.
