G80 Alloy Steel Lifting Chain High Strength Hoist Load Chain (6mm - 32mm)

  • G80 Alloy Steel Lifting Chain High Strength Hoist Load Chain (6mm - 32mm)
  • G80 Alloy Steel Lifting Chain High Strength Hoist Load Chain (6mm - 32mm)
  • G80 Alloy Steel Lifting Chain High Strength Hoist Load Chain (6mm - 32mm)
  • G80 Alloy Steel Lifting Chain High Strength Hoist Load Chain (6mm - 32mm)
  • G80 Alloy Steel Lifting Chain High Strength Hoist Load Chain (6mm - 32mm)
  • G80 Alloy Steel Lifting Chain High Strength Hoist Load Chain (6mm - 32mm)
Place of Origin CHINA
Brand Name OEM
Certification CE
Model Number 6MM-32MM
Minimum Order Quantity 100M
Price USD0.9-26 M
Packaging Details DRUM PLYWOODBOX BAGS
Delivery Time 5-30DAYS
Payment Terms T/T
Supply Ability 10000TON PER YEAR
Product Details
Productname Lifting Chain Loding Chian Load Chain Material Alloy Steel
Temperaturerange -20°C To +40°C Deliver Time Based On The Quantity
Breaking Load 4 :1 Break Load, 1.5:1 Testing Load Safety Factor 4:1
SIZE 6MM-32MM Finish Selfcolor Polished Black Oxide Painting Blacke Electro Coated Hot-dip Galvanized Electro-galvanized
After Sales Servie Yes
Leave a Message
Product Description

Factory Direct Supply | 100% Raw Alloy Material Control | Strictly Compliant with EN818-2 Standard

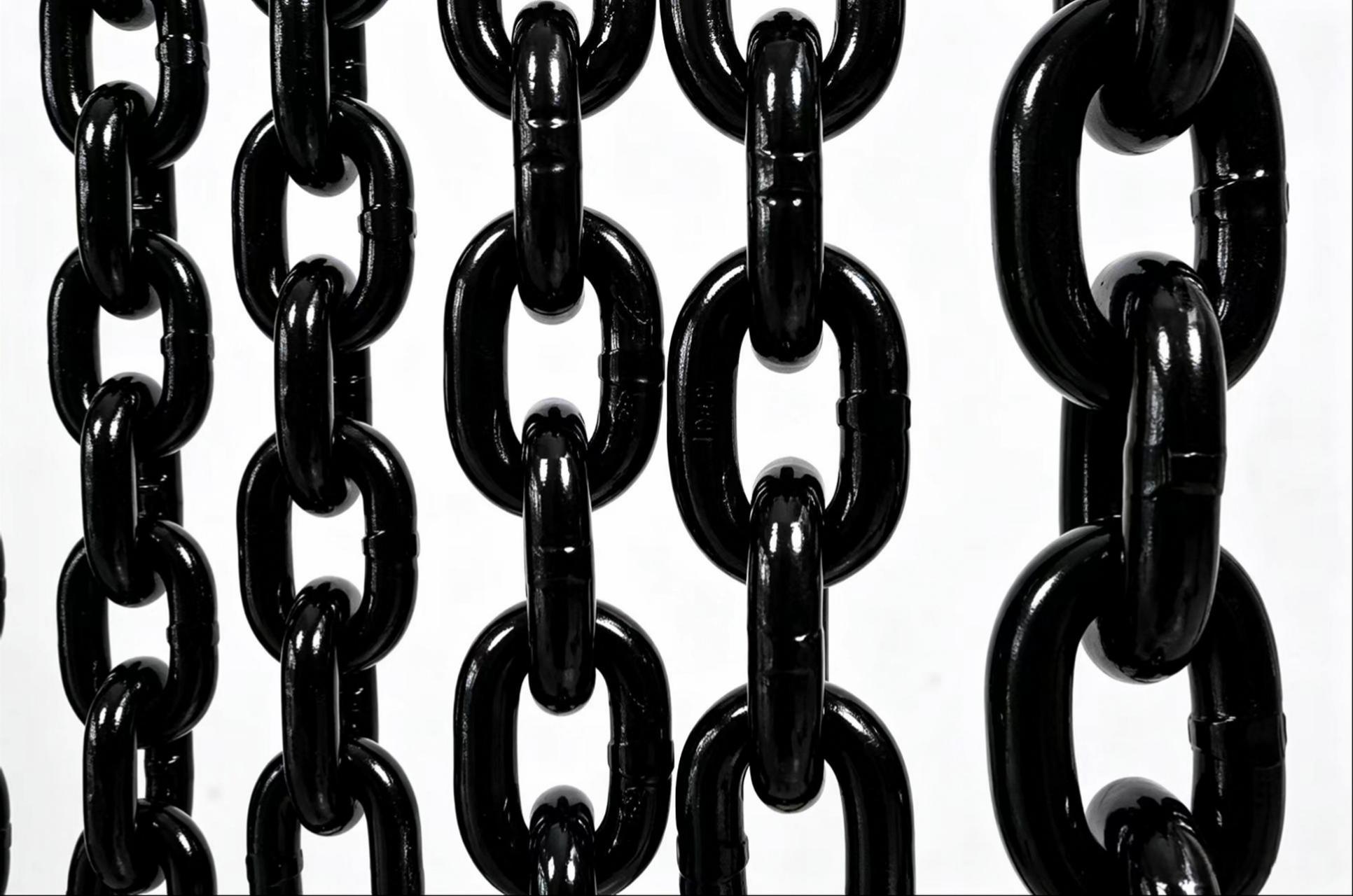

1. Raw Material & Superior Quality Control

Our G80 lifting chains are forged from premium high-grade alloy steel materials. By enforcing strict quality inspections right from the raw material warehouse, we guarantee exceptional tensile strength, wear resistance, and long service life for overhead lifting

G80 Alloy Steel Lifting Chain High Strength Hoist Load Chain (6mm - 32mm)

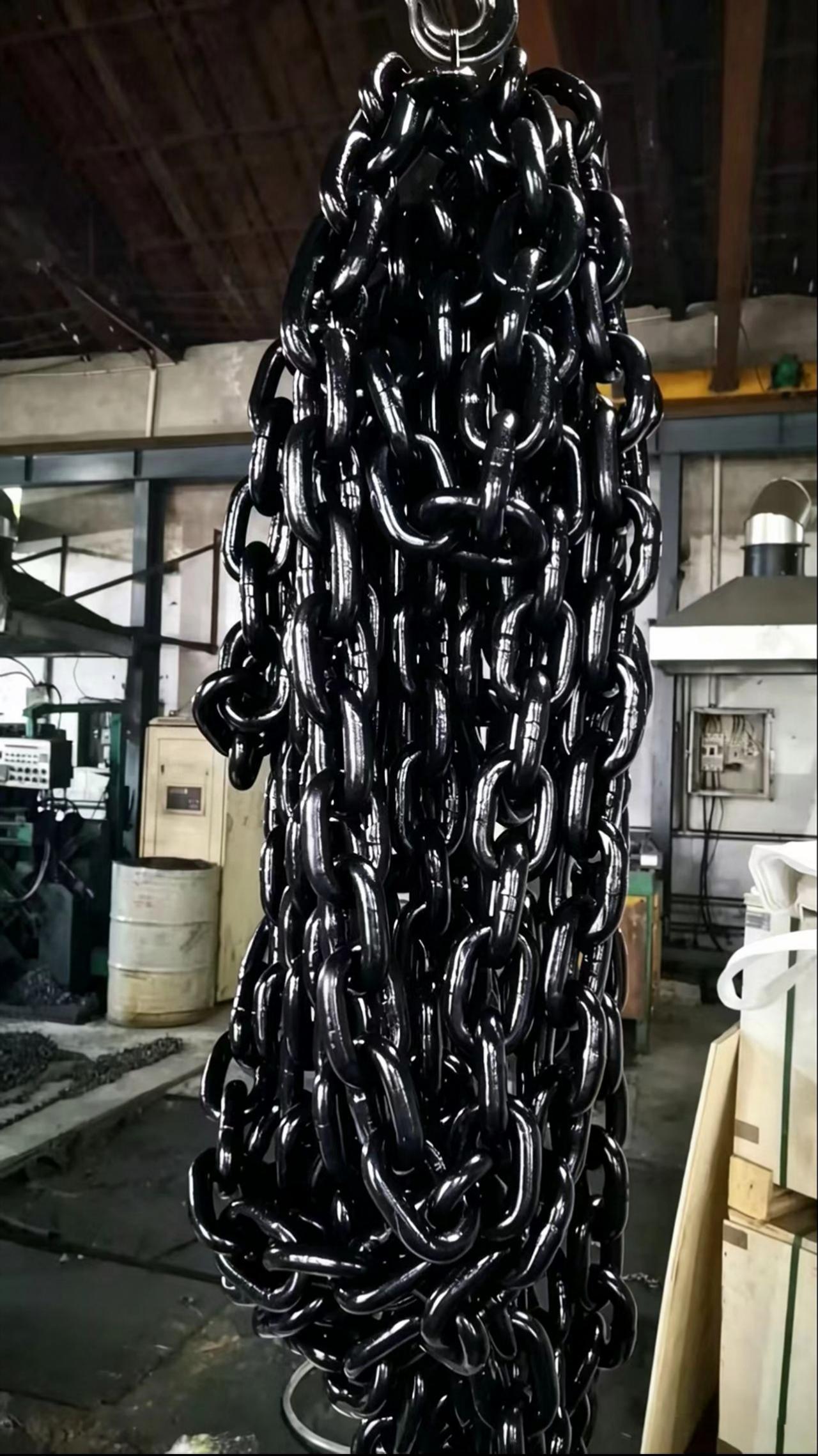

2. Advanced Automated Manufacturing Workshop

Equipped with high-precision automatic chain-bending and welding production lines, our manufacturing plant achieves consistent pitch tolerances and uniform weld joints across all chain links. Every production step—from automatic shaping to heat treatment—is strictly monitored.




G80 Alloy Steel Lifting Chain High Strength Hoist Load Chain (6mm - 32mm)

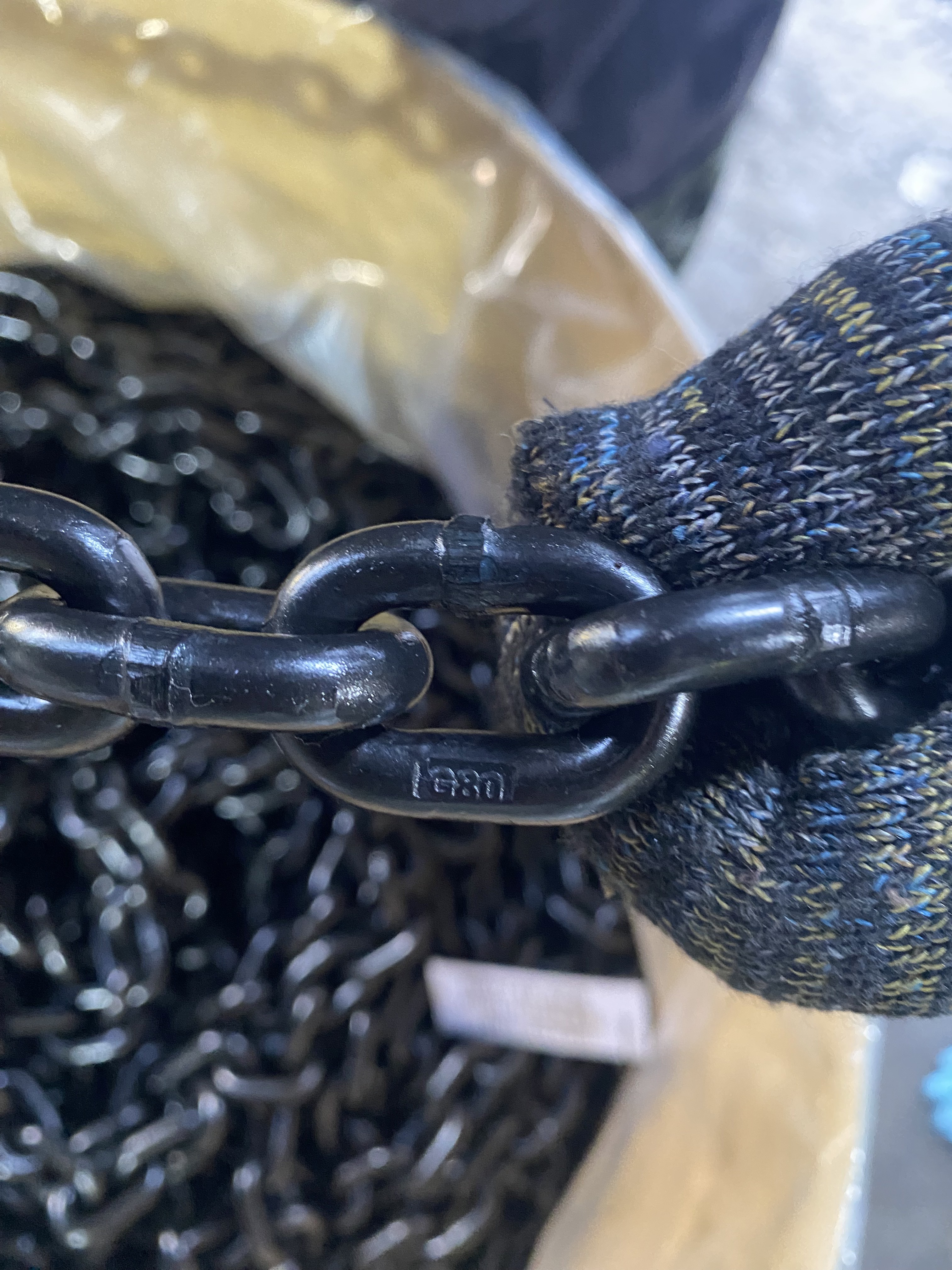

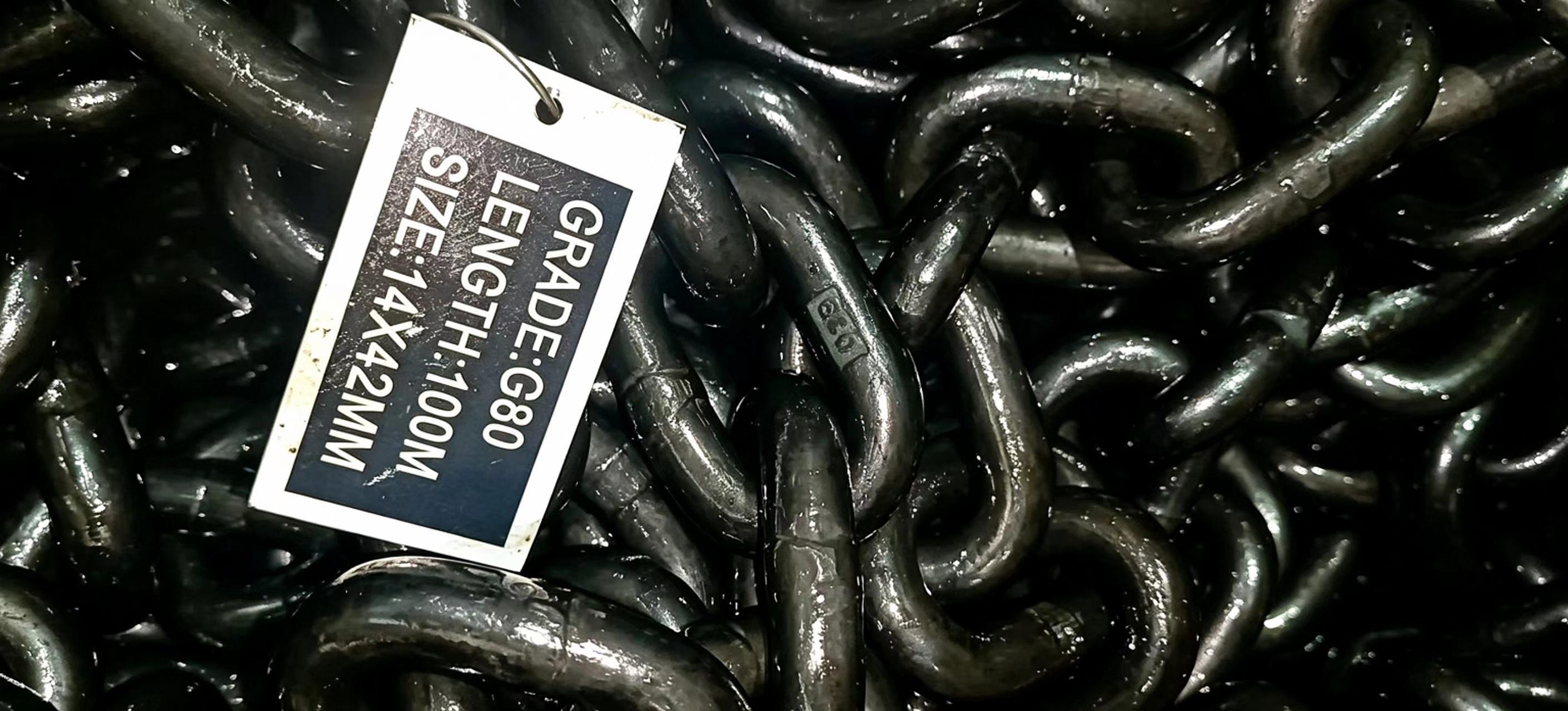

3. Clear Stamp Mark & Traceability

Safety and authenticity are paramount in industrial lifting. Each chain link features clear, deep-embossed "G80" grade markings at regular intervals, ensuring quick on-site identification and complete batch quality traceability.

G80 Alloy Steel Lifting Chain High Strength Hoist Load Chain (6mm - 32mm)

4.Technical Specifications

Chain Size (mm) Pitch / Inside Length (mm) Outside Width (mm) Working Load Limit (WLL) (Tons) Breaking Force (kN) Approx. Weight (kg/m)
6 x 18 18 21.6 1.12 45.2 0.8
8 x 24 24 28.8 2.00 80.4 1.4
10 x 30 30 36.0 3.15 126.0 2.2
13 x 39 39 46.8 5.30 212.0 3.8
16 x 48 48 57.6 8.00 320.0 5.7
20 x 60 60 72.0 12.50 502.0 9.0
22 x 66 66 79.2 15.00 608.0 10.9
26 x 78 78 93.6 21.20 848.0 15.2
32 x 96 96 115.2 31.50 1260.0 23.0

(Note: Custom dimensions and tolerance requirements can be customized upon request.)

5.Applications

  • Electric chain hoists and manual lever/chain blocks

  • G80 Alloy Steel Lifting Chain High Strength Hoist Load Chain (6mm - 32mm)

  • Overhead lifting slings for construction and mining

  • Port cargo handling and marine rigging

  • Heavy industrial equipment lifting

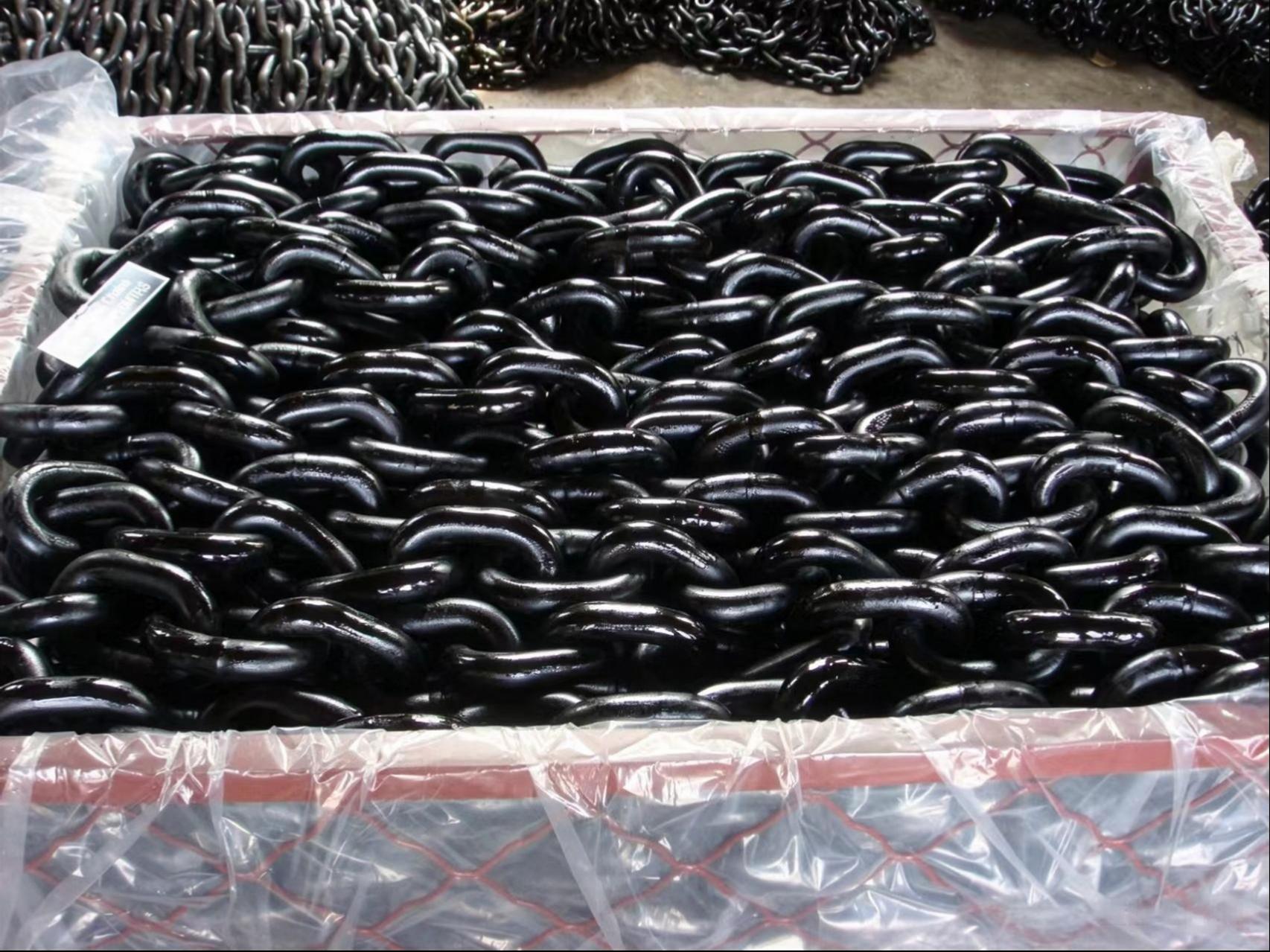

Packaging & Shipping



  • Standard Packaging: Steel Drums (100kg/300kg/500kg per drum) on export plywood pallets, or Wooden Cases / Gunny Bags with Reels.

  • Custom Packaging: Private label / custom mark tags attached upon request.

  • Port of Loading: Tianjin / Qingdao Port, China.
