Compact Lifting Chain Hoist Lightweight Chain Block 2ton Customized
| Place of Origin | CHINA |
|---|---|
| Brand Name | OEM |
| Certification | CE |
| Model Number | HS-VT 1TON TO 30TON |
| Document | C81989 MD.pdf |
| Minimum Order Quantity | 20 |
| Price | 38USD |
| Packaging Details | Carton, wooden case |
| Delivery Time | 20 Working time |
| Payment Terms | T/T |
| Supply Ability | 50000PCS/ YEAR |
Product Details
| Product Name | Lifting Chain Hoist | Test Load | 1.5Times |
|---|---|---|---|
| Breaking Load | 4Times | Capacity | 0.5Ton To 30Ton |
| Color | Yellow, Red, Black, Green, Blue Customized | After Sales Servie | Yes |
| Certificate | CE | ||
| Highlight | Compact Lifting Chain Hoist,Lifting Chain Hoist Lightweight,Chain Block 2ton Customized |
||
Product Description

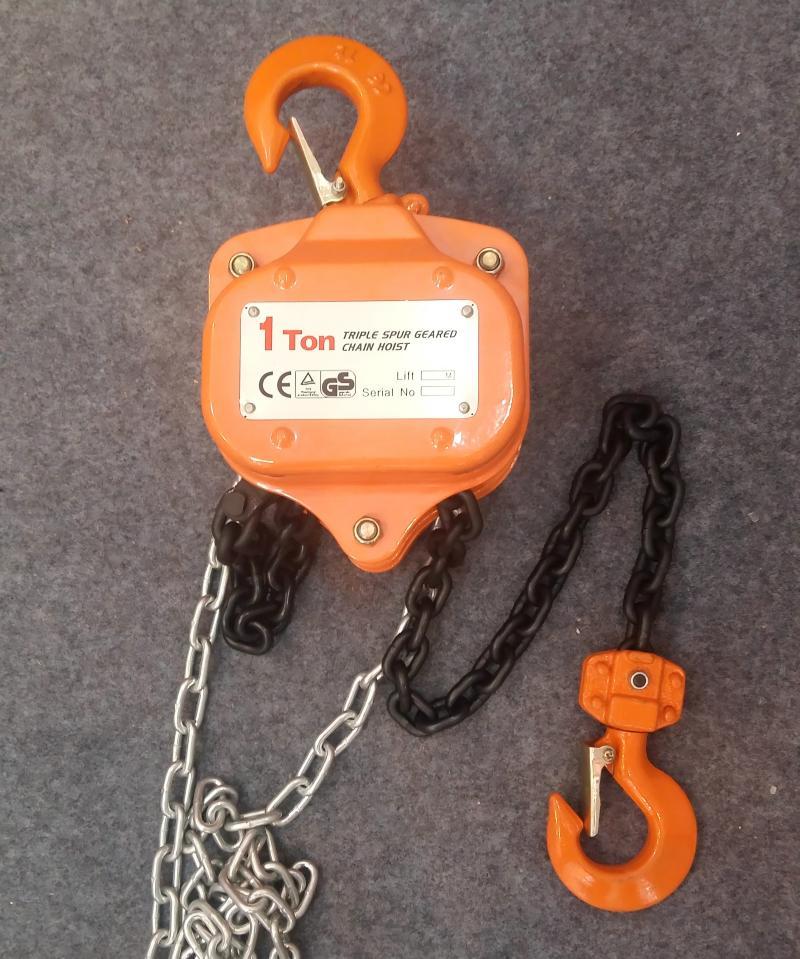

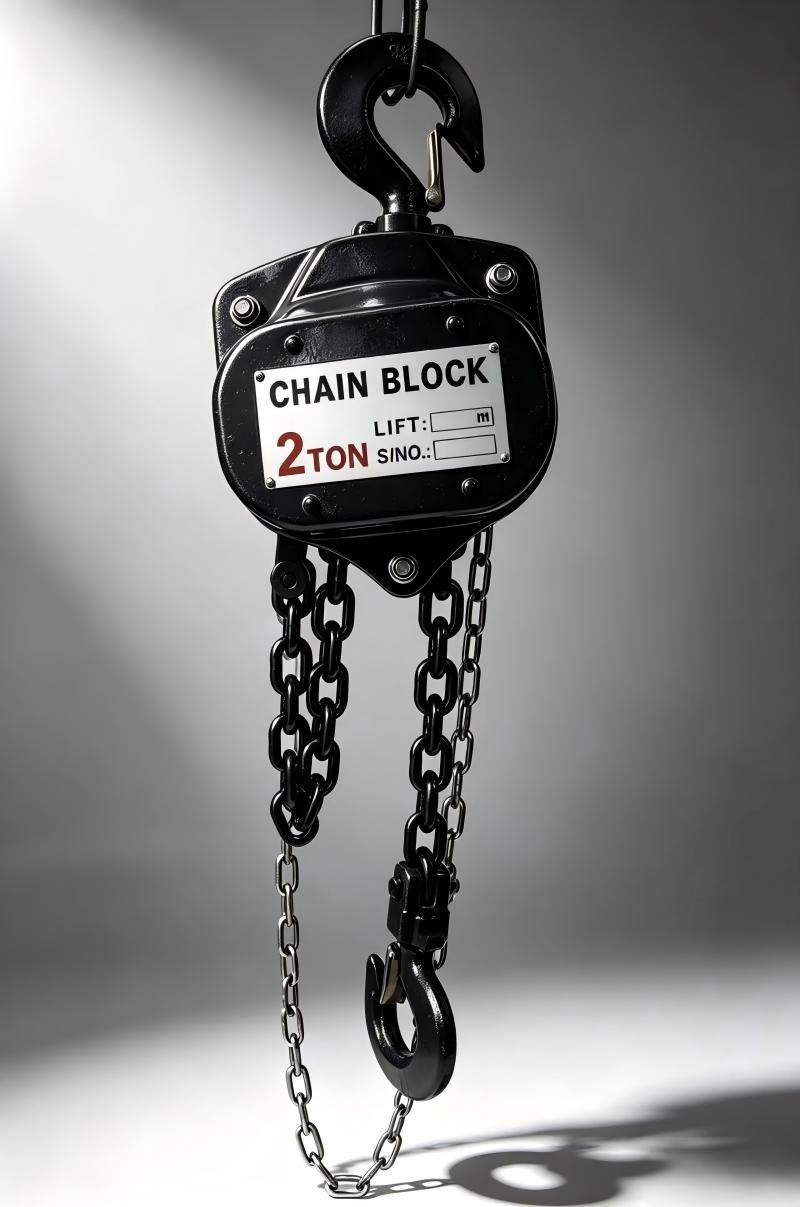

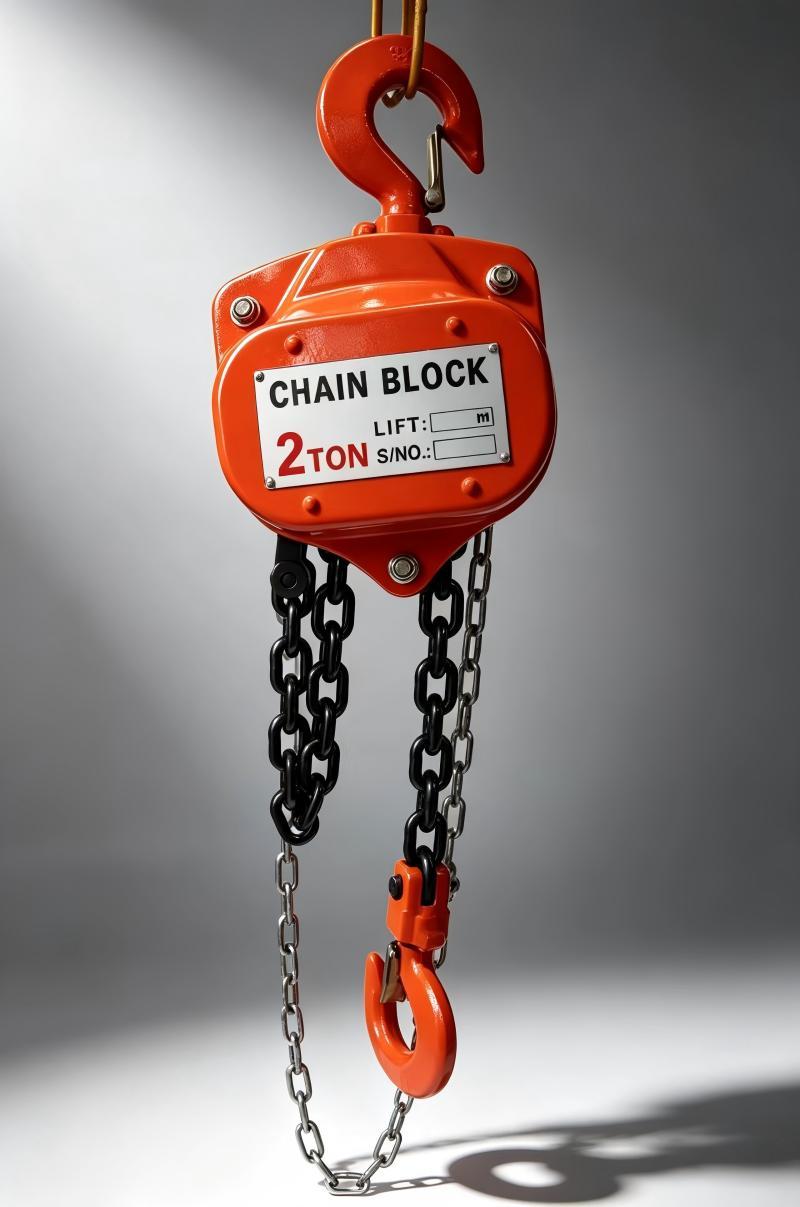

Manual chain hoist compact and lightweight vital type chain block 2ton
Description:
VT type chain block 2ton vital type
VT type manual chain block is designed based on Vital chain block.
With precision hardened gear set and friction disc brake system, the hoist holds loads firmly without slipping, performs stable lifting with smooth hand pulling. It is fitted with high tensile G80 alloy lifting chain, wear resistant and anti-fatigue for frequent use.
Built with overload protection structure, upper and lower chain stoppers to prevent over travel. This manual chain block features high efficiency, little pulling force, low failure rate and easy maintenance. Widely used in workshops, decoration, installation work, logistics loading and outdoor construction.
Feature:
| 1 | Alloyed steel hook, with heat treatment |
| 2 | G80 alloyed steel lifting chain |
| 3 | Strenthen spare parts: bearing, shaft, roller guide, plate ect. more flexiable |
| 4 | 1.5 times testing load, 4 times breaking load |
| 5 | Color: Customization |
| 6 | CE certificate |
Technical data
| Model | VT 1 | VT 1.5 | VT 2 | VT 3 | VT 5 | VT 10 | |
| Capacity(T) | 1 | 1.5 | 2 | 3 | 5 | 10 | |
| Standard Lifting Height(m) | 3 | 3 | 3 | 3 | 3 | 3.5 | |
| Testing Load(T) | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | |
| Min.Headroom(hook to hook)(mm) | 340 | 380 | 360 | 480 | 555 | 740 | |
| Pulling Force to Full LoadKGF | 33 | 34 | 34 | 35 | 39 | 41 | |
| No.of Load Chain Strand | 1 | 1 | 1 | 2 | 2 | 4 | |
| Diameter of Load Chain(mm) | 6.3 | 7.1 | 8 | 7.1 | 9 | 9 | |
| Gross Weight(Kg) | 12 | 15 | 20 | 21 | 37.5 | 74 | |
| Packing Measurement(CM) | 25*17*23 | 28*17*25 | 30*21*29 | 31*18*29 | 40*21*35.5 | 55*48*25 | |
Work shop:
