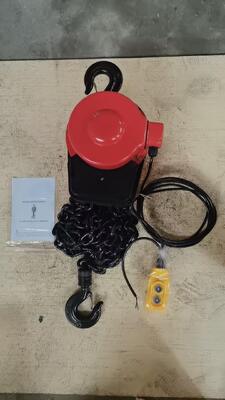

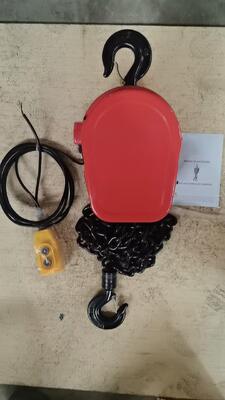

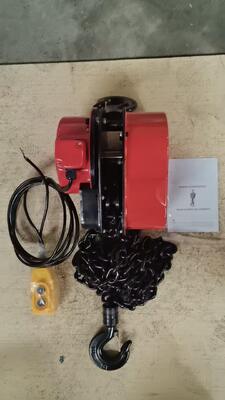

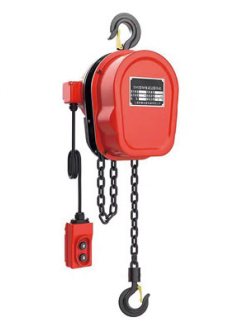

Single Speed DHS Electric Chain Hoist 0.5 Ton - 32 Ton Hook Chain Hoist
Product Details
| Product Name | DHS Electric Chain Hoist | Mount Type | Hook Type |
|---|---|---|---|
| Lifting Chain | G80 Alloy Steel Lifting Chain | Lifting Speed | Single Speed |
| Lifting Capacity | 0.5T-32T | Lifting Height | 3m/6m/9m, Customized |
| Power Supply | 220V/380V/415V/440V/50HZ/60HZ/3PH/1PH | Color | Orange, Yellow, Black, Blue, Red,Customized |
| Highlight | single speed dhs electric chain hoist,dhs electric chain hoist 0.5 ton,32 ton hook chain hoist |
||
Product Description
DHS Type Electric Chain Hoist 0.5-32 Ton Heavy Duty Motorized Chain Block Lifting Hoist for Industrial Application
Product Description:
DHS electric chain hoist is a high-performance stationary single-speed industrial lifting unit designed for fixed-point material handling and workstation hoisting operations. It is equipped with premium Grade G80 high-strength alloy steel load chain, which features excellent tensile resistance, wear resistance and fatigue resistance, ensuring stable load-bearing performance during long-term repeated lifting work.
Adopting robust and integrated mechanical construction, this electric hoist features a reasonable structural layout with fewer vulnerable parts, enabling convenient daily inspection and easy routine maintenance, effectively reducing later operating costs and downtime. The built-in reliable power-off brake realizes immediate braking once power cuts off, preventing load slipping and hovering accidents. Matched with travel limit switches, it effectively avoids over-lifting and over-dropping, fully guaranteeing safe and stable operation.
This hoist covers complete load capacities ranging from 0.5 Ton to 32 Ton to meet diverse lifting demands. Standard lifting heights include 4m, 6m, 9m and 12m, while customized lifting heights are available for special working conditions. It is perfectly suitable for fixed-point vertical lifting, small gantry crane supporting use and stationary workstation material handling. With stable performance, simple operation and cost-effective advantages, it provides a practical and economical lifting solution for various industrial workshops, processing plants and warehouses.
Features:
| Grade G80 Lifting Chain | Heat-treated alloy steel G80 chain, wear-resistant and stable under load. |
| Reliable Power-off Brake | Instant load locking after power cut to avoid accidental load dropping. |
| Upper & Lower Limit Protection | Limit switches control travel range and prevent mechanical collision damage. |
| Compact Fixed Structure | Standard fixed suspension installation, compact body ideal for fixed-point lifting. |
Tecnical data:
| DHS ELECTRIC CHAIN HOIST | |||||
| Working load Ton | 1Ton | 2Ton | 3Ton | 5Ton | 10Ton |
| Test load Ton | 1.25 | 2.5 | 3.75 | 6.25 | 12.5 |
| Lifting height | 3M/6M/9M | ||||
| Lifting speed m/min | 2.25 | 1.85 | 1.1 | 0.9 | 0.45 |
| Power W | 500 | 500 | 500 | 750 | 750 |
| Motor speed r/min | 1380 | 1380 | 1380 | 1380 | 1380 |
| Voltage | 380V/50HZ/3PH/220V | ||||
| Weight 3m kgs | 36 | 45 | 42 | 57 | 100 |
| Weight 6m kgs | 40 | 52 | 50 | 70 | 120 |
Workshop:
FAQ:
1. Are you manufacturer or trading company?
We are manufacturer with our own factories.
2. What’s the warranty for products?
Usually for 1 year for major part, for example, motor, pump. We also offer online service supports.
3. What’s your MOQ?
FOB term MOQ is 5pcs, EXW term MOQ is 1pcs. we also accept trial sample order.
4. What about deliver leading time?
About 15-30 working days
5. Where’s your factory?
Our factory located in Donglv industrial Area, belongs to Baoding city, near Capital Beijing. Convenient transportation. Our nearest port is Tianjin port.
