Industrial Lifting Wire Rope Electric Hoist Double Speed Single Girder Hoist Customized
Product Details
| Product Name | MD1 Double Speed Electric Wire Rope Hoist | Lifting Speed | Double Speed (Fast & Slow) |
|---|---|---|---|
| Lifting Capacity | 0.5ton To 50ton | Lifting Height | 6m,9m,12m,18m / Customized |
| Voltage | 220V/380V/440V/50HZ/60HZ/3PH | Motor Type | Pure Copper |
| Protection Class | IP54/IP44/M3/M4 | Gear Reduction | Three-stage Alloy Quenched |
| Highlight | Industrial Lifting Wire Rope Electric Hoist,Double Speed Single Girder Hoist,Single Girder Hoist Customized |
||
Product Description

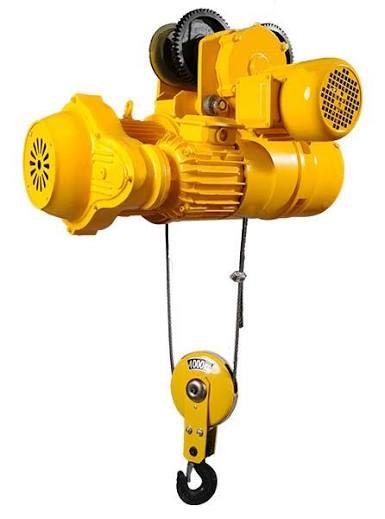

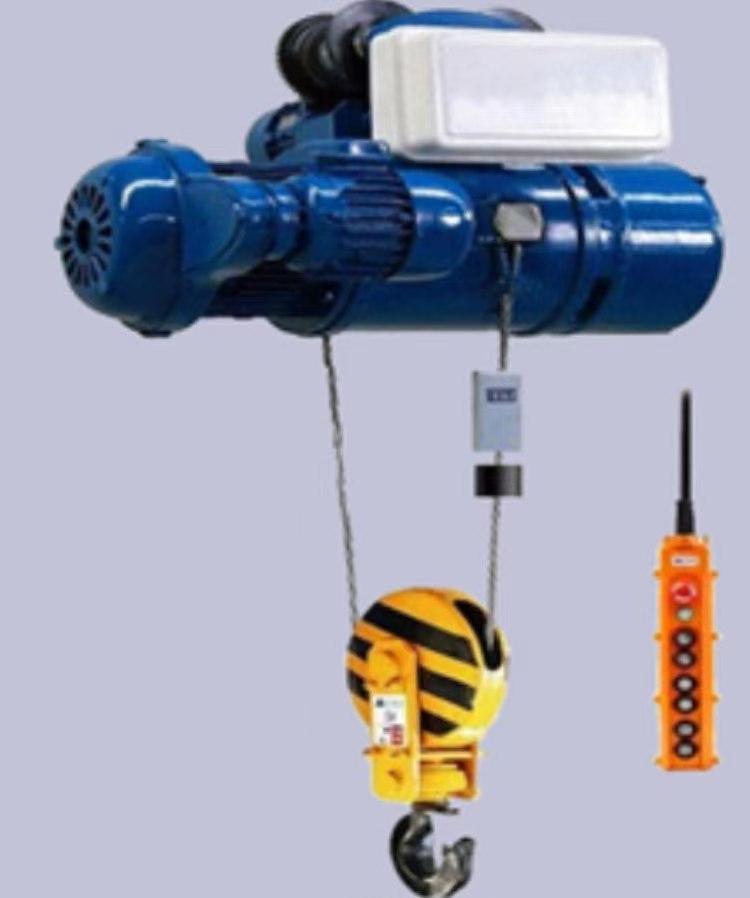

MD1 Double Speed Electric Wire Rope Hoist, Industrial Lifting Hoist for Single Girder Overhead Crane
Product Description:
MD1 double speed electric wire rope hoist is industrial lifting equipment with fast & slow dual lifting speeds. High speed for efficient transportation and low speed for precise positioning, ideal for precision hoisting operations. Equipped with power-off brake and travel limit protection for stable and safe operation. Available with travelling trolley for mobile lifting. Multiple capacities and customized lifting heights, widely matched with single girder overhead cranes for factories, mold workshops and steel structure plants.
Features:
| Dual Fast & Slow Lifting Speed | Fast speed for efficiency, low speed for fine adjustment, balance productivity and precision. |
| Power-off Self-locking Brake | Instant self-lock upon power cut to prevent load dropping. |
| Upper & Lower Limit Protection | Limit switches avoid over-travel and equipment collision damage. |
| Compact Integrated Structure | Compact integrated design, easy to mount on I-beam track. |
| Flexible Configuration & Customization | Fixed type or trolley type optional; capacity & lifting height customizable. |
Technical Data:
| Item | 0.5 Ton | 1 Ton | 2 Ton | 3 Ton | 5 Ton | 10 Ton | 16 Ton |
| Capacity (Ton) | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 |
| Lifting height (m) | 3–9 | 6–12 | 6–18 | 6–18 | 6–18 | 6–18 | 6–18 |
| Lifting speed (m/min) | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 | 8/0.8 |
| Running speed (m/min) | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 |
| Dia of wire rope (mm) | 4.8 | 7.4 | 11 | 13 | 15.5 | 15.5 | 15.5 |
| I Beam (GB706-88) | 16–28b | 16–28b | 20a–32c | 20a–32c | 25a–45c | 32b–63c | 32b–63c |
| Lift motor capacity (kW) | 0.8 | 1.5 | 3 | 4.5 | 7.5 | 13 | 13 |
| Running motor capacity (kW) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8×2 | 0.8×2 |
| Voltage | 220V/380V/440V, 50Hz/60Hz, 3PH | ||||||
| Remark | Double girder customized | ||||||
Applicable Locations:
MD1 double speed hoist specializes in precision lifting. Widely used for mold assembly, precise workpiece positioning, equipment maintenance and steel structure installation. Commonly matched with single girder overhead cranes for industrial tasks requiring accurate load placement.

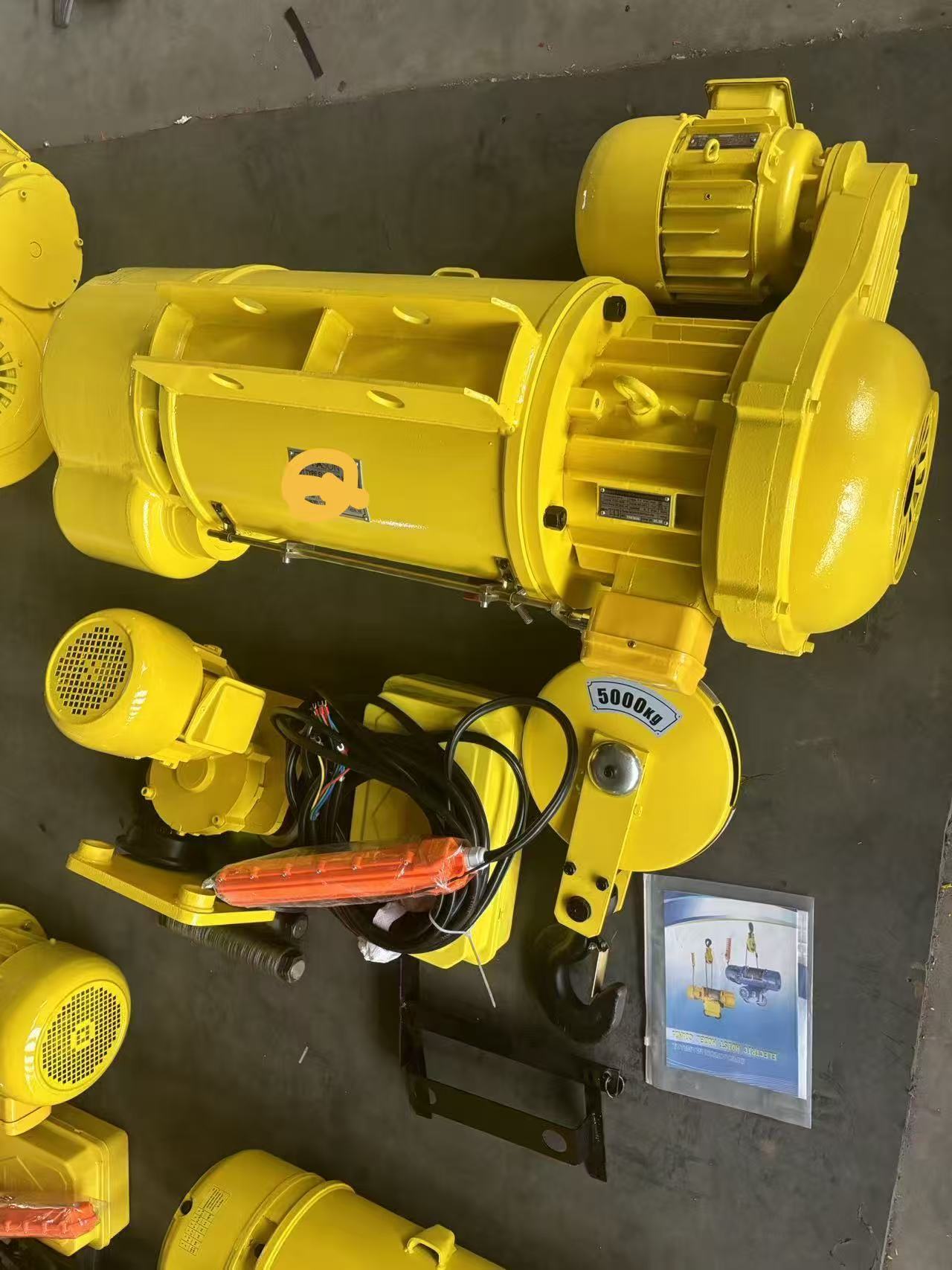

Workshop:
1. Are you manufacturer or trading company?
We are manufacturer with our own factories.
2. What’s the warranty for products?
Usually for 1 year for major part, for example, motor, pump. We also offer online service supports.
3. What’s your MOQ?
1pcs
4. What about deliver leading time?
About 15-30 working days
5. Where’s your factory?
Our factory located in Donglv industrial Area, belongs to Baoding city, near Capital Beijing. Convenient transportation. Our nearest port is Tianjin port.
