Off Road Vehicle Recovery Winch 12V / 24V Truck Recovery Winch
Product Details
| Product Name | Off-Road Electric Vehicle Winch | Working Voltage | 12V DC / 24V DC |
|---|---|---|---|
| Rated Pulling Force | 2000lbs -20000lbs | Control | Wire Control Or Wireless Remote Control |
| Power | Dc Powered Winch | Color | Black,Customized |
| Highlight | Off Road Vehicle Recovery Winch,12V Truck Recovery Winch,Vehicle Recovery Winch 24V |
||
Product Description

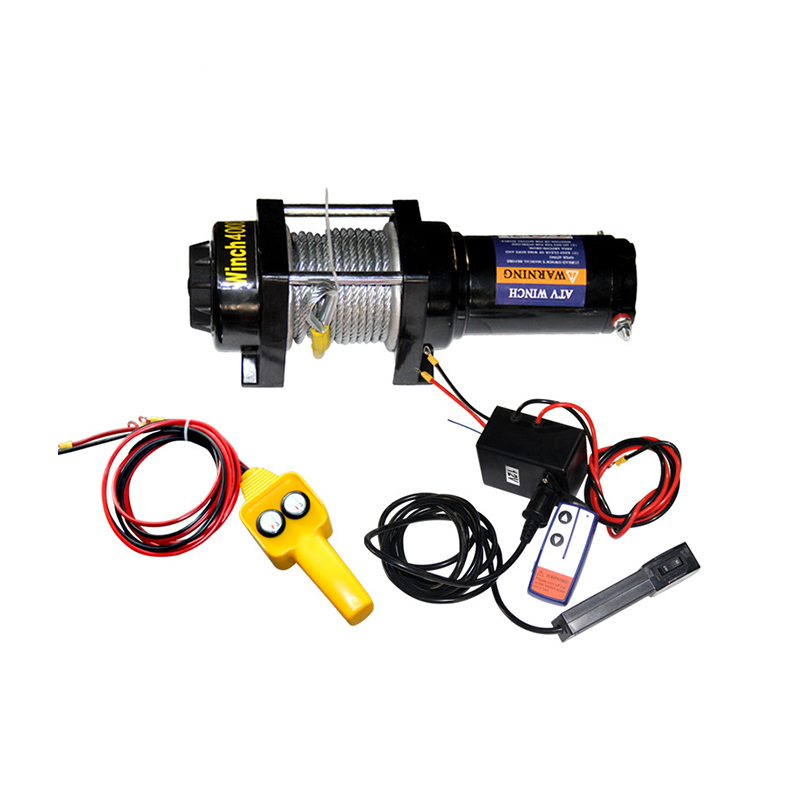

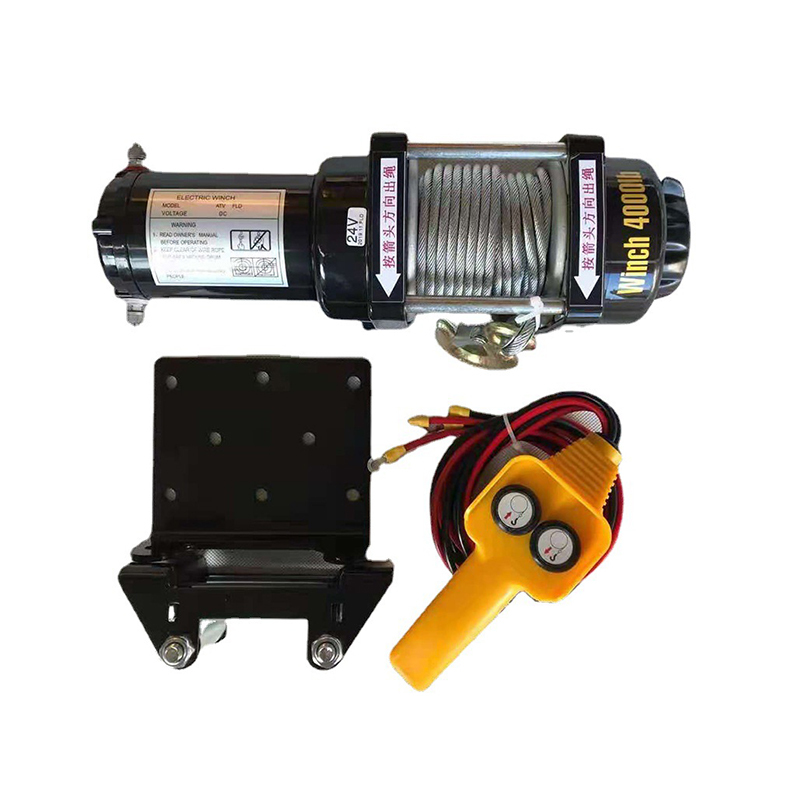

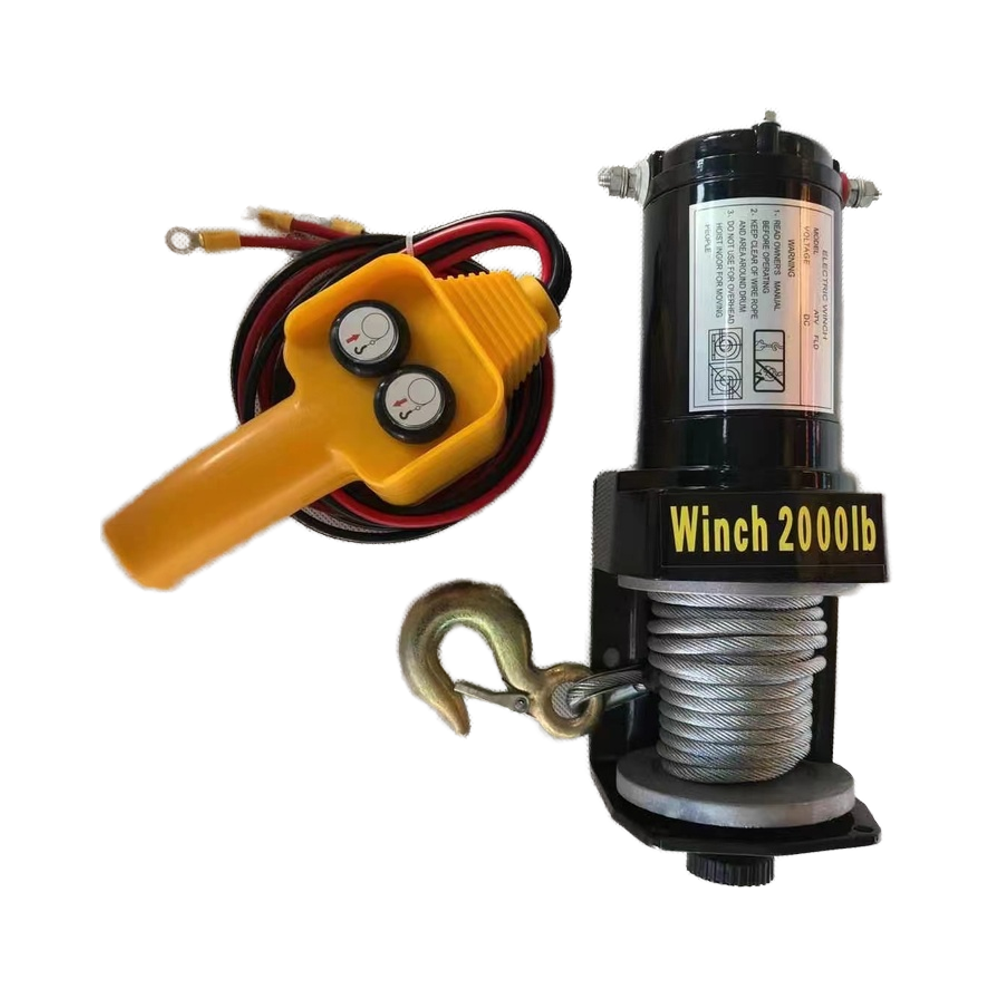

Off-Road Auto Electric Winch, 12V / 24V Vehicle Recovery Winch for SUV, Truck & ATV
Product Description:
Off-road electric vehicle winch is a professional DC-powered traction device specially installed on vehicle bumpers for outdoor self-rescue and heavy hauling work. Powered directly by the vehicle battery, it delivers stable and powerful pulling force without additional power sources, perfectly meeting various tough working demands for off-road rescue, trapped vehicle recovery, field obstacle clearance and outdoor heavy goods hauling.
Equipped with a high-strength planetary gear reduction system, the winch realizes large torque output with stable transmission, labor-saving operation and strong load-bearing capacity. The built-in self-locking brake structure provides reliable positioning and anti-slip performance during traction, effectively preventing accidental rope retraction and ensuring overall operation safety.
This electric winch supports two mainstream rope configurations, including durable steel wire rope and lightweight flexible synthetic rope, allowing users to choose according to different usage scenarios. Fitted with an IP waterproof-grade motor, it features excellent water resistance and dustproof performance, maintaining stable and consistent working output even in muddy, rainy, snowy and harsh wild field environments.
Key Features:
| Planetary Gear Reduction System | High efficiency planetary gear set, strong pulling force, stable and low noise during traction. |
| Automatic Load Holding Brake | Instant self-lock under load; prevents reverse rope slipping for safe rescue operation. |
| Waterproof DC Motor | Sealed waterproof motor, works reliably under rainy, muddy off-road conditions. |
| Multiple Capacity Options | Wide range pulling force from 2000lbs–20000lbs, suitable for ATV, SUV and heavy trucks. |
Technical Specifications:
| Electric winch 12V/24V, wire rope length can make according customer's request | ||||||||||
| Model | Rated traction (kg) |
Vertical lifting (kg) |
Motor no-load power (kw) |
Wire rope (diaxlength) |
Size (LxWxH) mm |
Installation dimensions (hole spacing-hole diameter) mm |
Drum dimensions (diameter length) mm |
G.w (kg) |
Wooden case size (LxWxH) cm |
Remart |
| 2000lbs | 900 | 200 | 0.4 | 4mmx6m | 268x110x105 | 76-8.5 | 3.15x72 | 5.80 | 33x24x15 | Without mounting plate and rope guide |
| 3000lbs | 1300 | 300 | 0.55 | 5mmx6m | 299x110x105 | 76-8.5 | 31.5x72 | 6.15 | 33x24x15 | Without mounting plate and rope guide |
| 3500lbs | 1500 | 350 | 0.6 | 5mmx10m | 320x110x105 | 76-8.5 | 31.5x72 | 8.15 | 40x31x16 | With mounting plate and rope guide |
| 4000lbs | 1800 | 400 | 0.8 | 5mmx10m | 343x110x112 | 76-8.5 | 49.5x72 | 9.20 | 40x31x16 | With mounting plate and rope guide |
| 4500lbs | 2000 | 450 | 0.9 | 5mmx10m | 363x110x112 | 76-8.5 | 49.5x72 | 9.55 | 40x31x16 | With mounting plate and rope guide,with remote wireless control |
| 6000lbs | 2700 | 500 | 1.5 | 7mmx14m | 340x160x217 | 165x114-11 | 63x135 | 23.80 | 55x25x32 | Without mounting plate and rope guide |
| 9500lbs | 4300 | 600 | 1.9 | 9mmx24m | 529x160x217 | 255x114-11 | 63x220 | 36.15 | 58x32x29.5 | With rope guid and remoe wireless control, without mounting plate |
| 12000lbs | 5400 | 750 | 2.0 | 9mmx24m | 529x160x217 | 255x114-11 | 63x220 | 37.25 | 58x32x29.5 | With rope guide and remote wireless control, without mounting plate |
| 13000-13500lbs | 6000 | 800 | 2.2 | 9mmx24m | 529x160x217 | 255x114-11 | 63x220 | 37.25 | 58x32x29.5 | With rope guide and remote wireless control, without mounting plate |
| 20000lbs | 9000 | 1000 | 2.8 | 1lmmx24m | 560x196x260 | 255x114-12 | 88x215 | 52.00 | 63x31x23 | With rope guide and remote wireless control, without mounting plate |
Workshop:
Application Scenarios:
The electric offroad winch is core equipment for outdoor off-road enthusiasts. When vehicles get trapped in mud, sand or slopes, the winch provides reliable traction for self-rescue. It is also used for farm hauling, small engineering traction and ATV heavy work. Compared with industrial AC winches, this DC winch is compact, easy to install and powered directly by vehicle battery.
