Anti Collision Manual Push Trolley I Beam Chain Block Trolley For Easy Lifting
Product Details
| Product Name | Plain Trolley | Operation Type | Anti-Collision Manual Push Trolley |
|---|---|---|---|
| Capacity | 0.5T - 10T | Beam Type | I Beam, H Beam, Channel Beam |
| Material | Alloyed Steel | Color | Red, Yellow, Orange, Blue, Customized |
| Highlight | Anti Collision Manual Push Trolley,I Beam Manual Push Trolley,I Beam Chain Block Trolley |
||
Product Description

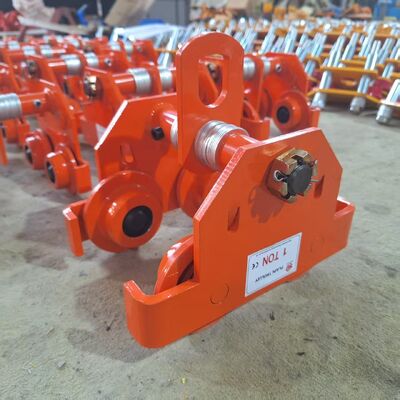

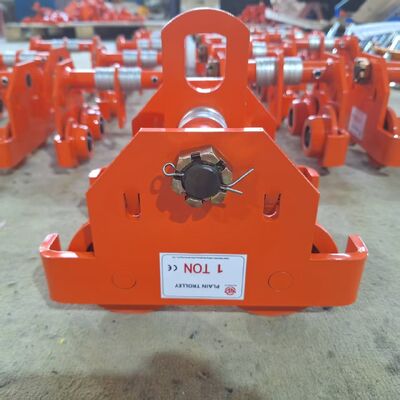

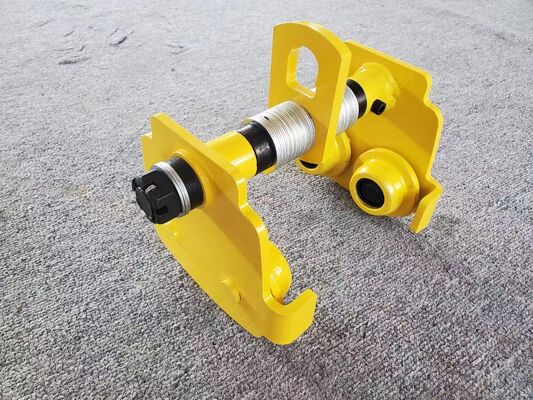

Anti-Collision Manual Push Trolley, I-Beam Push Type Monorail Trolley for Chain Block
Product Description:
Anti-collision Manual Plain Trolley is an upgraded and optimized push-type monorail travelling device for industrial overhead lifting systems. Different from ordinary standard trolleys, its trolley frame is integrally equipped with sturdy mechanical anti-collision baffles on both ends. When the trolley travels to the limit position of the I-beam track, the built-in baffles provide effective buffer and reliable limiting protection, intelligently preventing equipment overtravel, sliding out of the track and accidental collision damage, greatly improving overall operation safety.
This upgraded trolley adopts a thickened integral welded steel frame structure, featuring high structural rigidity, strong compression resistance and excellent deformation resistance under long-term heavy-load operation. Equipped with a professional anti-derail wheel structure, it completely avoids derailment and falling risks during overhead travelling. The flexibly adjustable wheel flange width enables perfect adaptation to various standard I-beam models, with strong site compatibility and wide applicability.
Lightweight and labor-saving in manual pushing operation, it can be perfectly matched with hand chain blocks to form a complete overhead lifting combination set. It stably completes overhead cargo hoisting, transverse movement and material transfer work. Ideal for all kinds of indoor industrial scenarios, including machinery processing factories, warehouse storage, equipment maintenance workshops and factory assembly lines. With simple installation, stable performance and low maintenance cost, it is an upgraded essential accessory for indoor hoisting operations.
Key Features:
| Integral Mechanical Anti-Collision Baffle | Metal collision guard integrated with trolley body, durable, anti-aging. |
| Heavy-duty Cast Steel Wheels | Low friction, wear-resistant cast wheels, effortless pushing movement. |
| Simple Maintenance | Compact mechanical structure, few vulnerable parts, easy inspection & service. |
| Adjustable Wheel Span | Flexible flange width adjustment to fit various standard I-beams. |
Technical Specifications:
| Capacity (T) | I-bearm width (mm) | Min. turning radius(M) | N.W (kg) | A (mm) | B (mm) | C (mm) | H (mm) |
| 0.5 | 68-94 | 0.9 | 5.3 | 189 | 170 | 183 | 112 |
| 1.0 | 68-100 | 1.0 | 7.5 | 208 | 193 | 215 | 143 |
| 2.0 | 94-124 | 1.1 | 11.2 | 250 | 235 | 260 | 175 |
| 3.0 | 116-140 | 1.3 | 21 | 288 | 280 | 308 | 215 |
| 5.0 | 140-180 | 1.4 | 30.5 | 355 | 335 | 382 | 250 |
| 10 | 125-180 | 1.7 | 90 | 362 | 395 | 510 | 295 |
| 20 | 136-203 | 5.0 | 235 | 475 | 642 | 622 | 315 |
Workshop:
Application Scenarios:
The mechanical anti-collision push trolley is widely used with hand chain block for indoor overhead lifting. The all-metal collision protection has longer service life compared with rubber buffer style, ideal for foundries, machining workshops and sites with heavy dust where rubber is easy to wear. It effectively restricts the travelling range and prevents the trolley from hitting the beam end.
FAQ:
1. Are you manufacturer or trading company?
We are manufacturer with our own factories.
2.What’s the warranty for products?
Usually for 1 year for major part, for example, motor, pump. We also offer online service supports.
3.What’s your MOQ?
Negotiate based on the circumstances. EXW term: 1pcs.
4. What’s your payment term?
100% TT under amount 5000USD, 30%TT as down payment, balance before loading when amount more than 5000USD.
5. What about deliver leading time?
About 15 working days
6. Where’s your factory?
Our factory located in Donglv industrial Area, belongs to Baoding city, near Capital Beijing. Convenient transportation. Our nearest port is Tianjin port.
