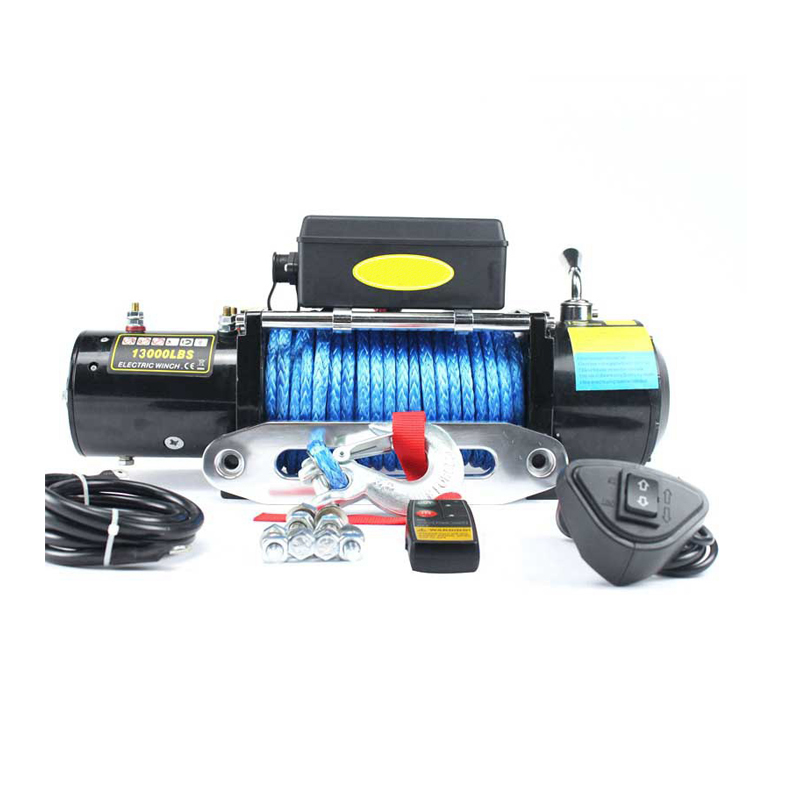

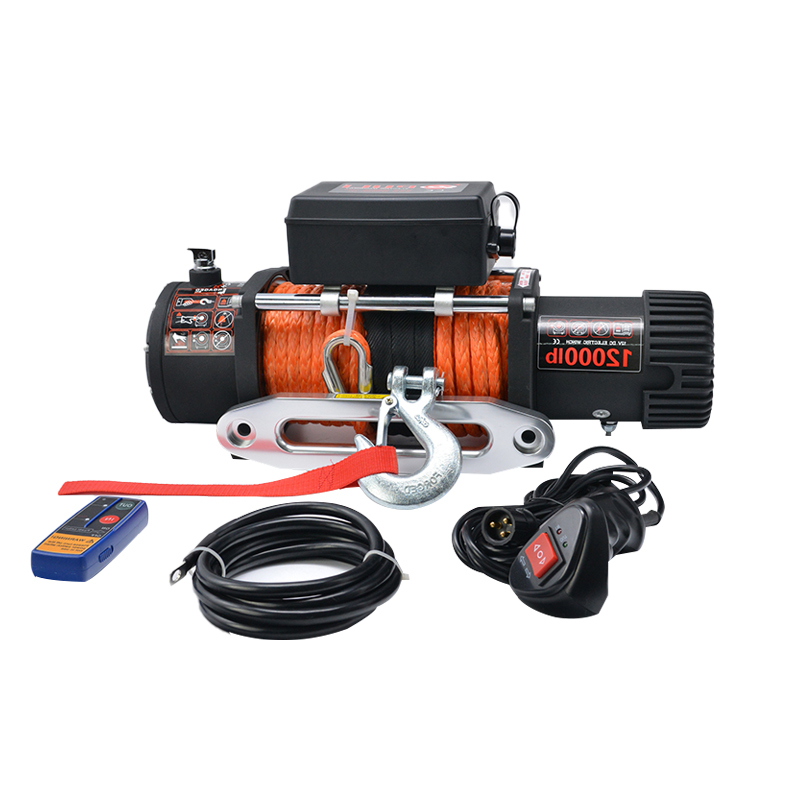

IP55 Waterproof Synthetic Rope Winch 12V 24V DC Electric Winch Lightweight

  • IP55 Waterproof Synthetic Rope Winch 12V 24V DC Electric Winch Lightweight
  • IP55 Waterproof Synthetic Rope Winch 12V 24V DC Electric Winch Lightweight
  • IP55 Waterproof Synthetic Rope Winch 12V 24V DC Electric Winch Lightweight
  • IP55 Waterproof Synthetic Rope Winch 12V 24V DC Electric Winch Lightweight
Place of Origin China
Brand Name OEM/WELDON LIFT
Certification CE ISO
Model Number 2000LBS,3000LBS,4000LBS,6000LSB,9000LBS,12000LBS,13500LBS,20000LBS
Minimum Order Quantity 10
Price 200 usd
Packaging Details Carton or PLY wooden case
Delivery Time 20 working days
Payment Terms T/T
Supply Ability 500000pc/ year
Product Details
Product Name Synthenica Rope Electric Winch,Car Electric Winch, Truck Electric Winch, Auto Electric Winch Moror Pure Motor
Power Dc Powered Winch 24V/12V Control Wire Control Or Wireless Remote Control
Color Black, Or Customization After Sales Service 1 Year
Highlight

IP55 Synthetic Rope Winch

,

12V DC Electric Winch

,

24V DC Electric Winch
Leave a Message
Product Description

Synthenica rope electric Winch 12V 24V DC Truck Winch IP55 Waterproof for Towing SUV Jeep Trailer Boat Off-Road Vehicle


Description: Synthenica rope electric winch, Auto electric winch, car electric winch

Synthetic rope (usually made of high-strength UHMWPE) . offers a lightweight, safer, and flexible alternative to traditional steel cables.

Primarily used for vehicle self-recovery, off-road rescue, obstacle clearing and towing, and heavy-load hauling.

We also accept ODM and OEM project. Our electric winch export to all over the world.


Features:

1 Pure copper motor
2 Wire rope and synthenic rope both offer
3 Forged hooks
4 12V and 24V DC
5 Turck electric winch, car electric winch
6 Easy install and operate


IP55 Waterproof Synthetic Rope Winch 12V 24V DC Electric Winch Lightweight

IP55 Waterproof Synthetic Rope Winch 12V 24V DC Electric Winch Lightweight


IP55 Waterproof Synthetic Rope Winch 12V 24V DC Electric Winch Lightweight

IP55 Waterproof Synthetic Rope Winch 12V 24V DC Electric Winch Lightweight

Technical data

Electric winch 12V/24V, wire rope length can make according customer's request
Model  Rated traction
(kg)		 Vertical lifting
(kg)		 Motor no-load
power
(kw)		 Wire rope
(diaxlength)		 Size
(LxWxH)
mm		 Installation dimensions
(hole spacing-hole diameter)
mm		 Drum dimensions
(diameter length)
mm		 G.w
(kg)		 Wooden case size
(LxWxH)
cm		 Remart
2000lbs 900 200 0.4 4mmx6m 268x110x105 76-8.5 3.15x72 5.80  33x24x15 Without mounting plate and rope guide
3000lbs 1300 300 0.55 5mmx6m 299x110x105 76-8.5 31.5x72 6.15  33x24x15 Without mounting plate and rope guide
3500lbs 1500 350 0.6 5mmx10m 320x110x105 76-8.5 31.5x72 8.15  40x31x16 With mounting plate and rope guide
4000lbs 1800 400 0.8 5mmx10m 343x110x112 76-8.5 49.5x72 9.20  40x31x16 With mounting plate and rope guide
4500lbs 2000 450 0.9 5mmx10m 363x110x112 76-8.5 49.5x72 9.55  40x31x16 With mounting plate and rope guide,with remote wireless control
6000lbs 2700 500 1.5 7mmx14m 340x160x217 165x114-11 63x135 23.80  55x25x32 Without mounting plate and rope guide
9500lbs 4300 600 1.9 9mmx24m 529x160x217 255x114-11 63x220 36.15  58x32x29.5 With rope guid and remoe wireless control, without mounting plate
12000lbs 5400 750 2.0 9mmx24m 529x160x217 255x114-11 63x220 37.25  58x32x29.5 With rope guide and remote wireless control,  without mounting plate
13000-13500lbs 6000 800 2.2 9mmx24m 529x160x217 255x114-11 63x220 37.25  58x32x29.5 With rope guide and remote wireless control,  without mounting plate
20000lbs 9000 1000 2.8 1lmmx24m 560x196x260 255x114-12 88x215 52.00  63x31x23 With rope guide and remote wireless control,  without mounting plate
